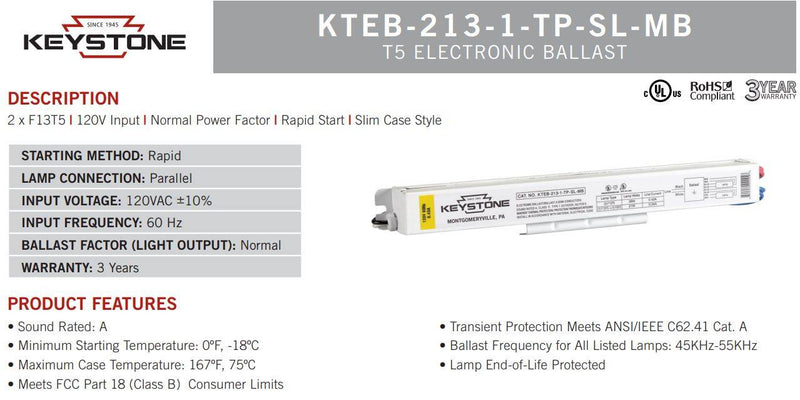

Keystone KTEB-213-1-TP-SL-MB 2-Lamp T5 Ballast – 120V Rapid Start for F13T5
The Keystone Technologies KTEB-213-1-TP-SL-MB is a 120V T5 electronic ballast for two F13T5 lamps. It also runs one F13T5 plus one F8T5, or two CFQ13W/G24q compact fluorescents. Rapid-start design with a slim 9" case and mounting bracket makes it a common replacement for undercabinet and small T5 fixtures. Use non-shunted G5 lampholders.
Key Features
- Operates 2 × F13T5 T5 lamps
- Also operates F13T5 + F8T5 or 2 × CFQ13W/G24q
- Rapid start – reliable start without instant-start lamp stress
- 120V input for residential and light commercial fixtures
- Slim case with mounting bracket (MB)
- Sound Rated A and thermally protected
- End-of-lamp-life protection
- 3-year manufacturer warranty from Keystone Technologies
Specifications
-
Model: KTEB-213-1-TP-SL-MB
-
Brand: Keystone Technologies
-
Lamp Type: T5 linear (G5 miniature bi-pin) and 13W CFL
-
Number of Lamps: 2
-
Start Method: Rapid Start
-
Lamp Connection: Parallel
-
Input Voltage: 120V
-
Ballast Type: Electronic
-
Power Factor: Normal
-
Ballast Factor: 0.95 (2-lamp F13T5)
-
Input Watts: 23W (2-lamp F13T5)
-
Sound Rating: A
-
Dimensions: 9.00" L × 0.95" W × 0.95" H
-
Mounting Centers: 8.75"
-
Min. Start Temperature: 0°F
-
Max. Case Temperature: 167°F
-
Certifications: UL Listed, FCC Part 18 Class B
-
Warranty: 3 Years
Compatible Lamps
- 2 × F13T5 (13W T5, G5)
- 1 × F13T5 + 1 × F8T5 (G5)
- 2 × CFQ13W/G24q
Compatible With / Replaces
- Other 120V 2-lamp F13T5 rapid-start undercabinet ballasts
- Common replacement in Keystone 2-lamp F13T5 undercabinet fixtures
- Requires non-shunted G5 lampholders
- Not a Type B LED driver – for T5 fluorescent lamps, or Type A T5 LED tubes only if the tube maker lists this ballast
Common Applications
- Undercabinet fluorescent fixtures
- Display, task, and small T5 fixtures
- Residential and light commercial replacements
- Magnetic-to-electronic T5 ballast upgrades
Why Buy from Keystone Technologies?
- Reliable T5 rapid-start performance
- Slim case with mounting bracket for tight fixtures
- Built for F13T5 undercabinet replacements
- 3-year manufacturer warranty
