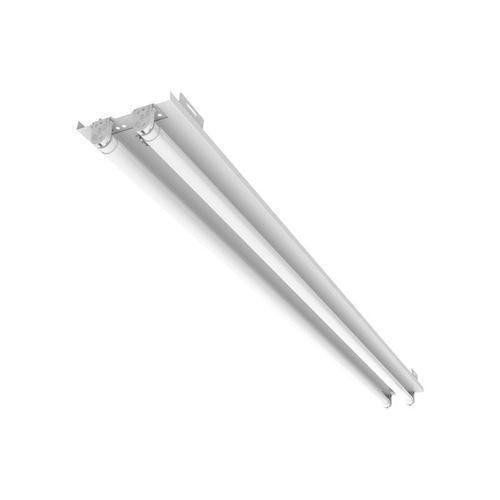

K34-02B04-WA | LED tube 4.25" strip retrofit kit, 2-lamp T8, 30W, 120/277V, 4'

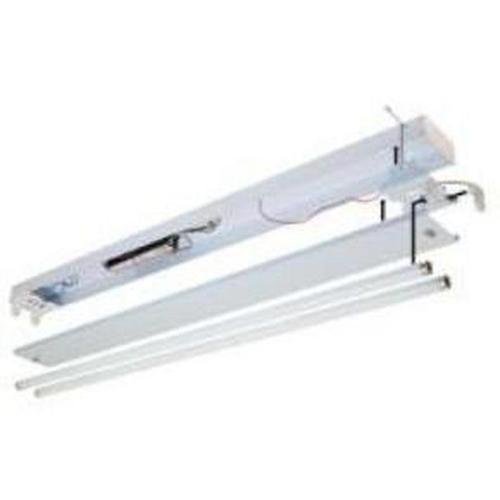

LeanLight K34-02B04-WA is a 2-lamp, 4', T8 LED tube strip pan kit.  The K34 series kit comes with a ballast pan and brackets for 4.25" channel width strip fixtures.  The kit comes with brackets, lamp holders quarter turns, ballast cover, tek screws and optional LED tubes and wiring harness.   The TLED kit is used to upgrade 2-lamp T12 & T8 fluorescent industrial strip fixture without having to buy a new fixture.  The strip kit is also known as a ballast cover kit, ballast pan kit or light conversion kit.  The K34 is made in the USA and comes with a 5 year MFG warranty. The industry standard  kit is ideal fit for canopies, factories, shops, warehouses and many more.

Optional 15 watt LED tubes.



Brand:	LeanLight	Lens:	N/A
Light:	LED	Lumens:	3700
Lamp:	T8 Tube	Wattage:	30
Ballast:	Bypass	Voltage:	120 - 277
Length:	48.00"	CCT:	4000K or 5000K
Width:	4.28"	CRI:	84+
Height:	0.50"	Certifications:	BAA

Features & Benefits

• Significant energy savings through delamping existing strip
• Significantly enhances existing fixture efficiencies
• Aluminum components provide less maintenance and lasting appeal
• Design to fit 4.25" width strip channels
• 100% recyclable
• Toolless wiring access for simple maintenance

Components

• (1) Ballast Cover
• (2) Brackets
• (4) Lamp Holders
• (4) Tek Screws
• (2) Quarter Turns
• (1) Wiring Harness - single-ended, non-shunted (optional)
• (2) LED Tubes - 15W, ballast bypass (optional)

 Warranty

• 5 year MFG limited warranty



K34 series specification sheet
