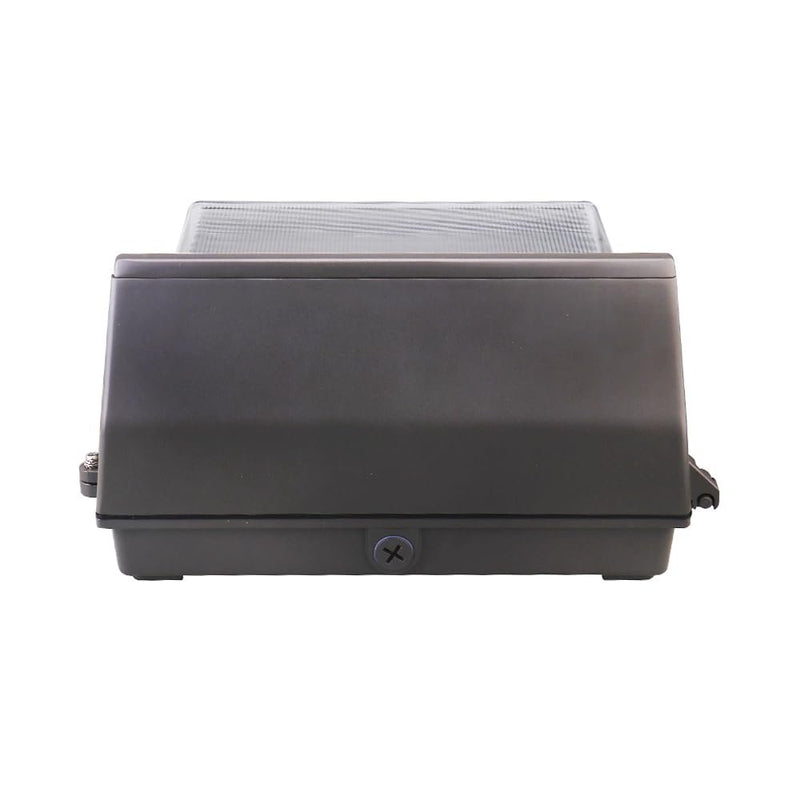

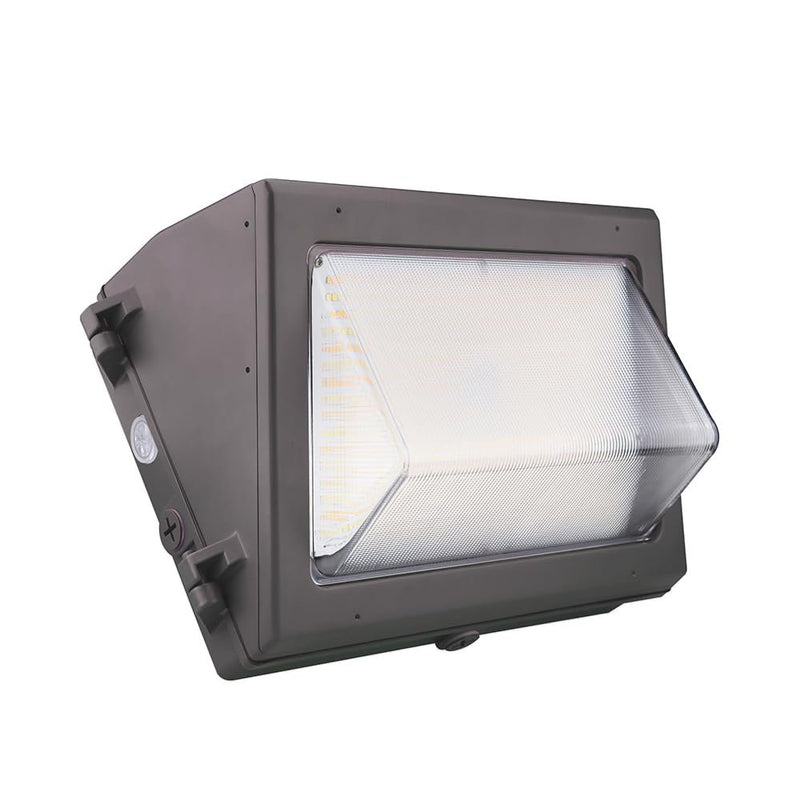

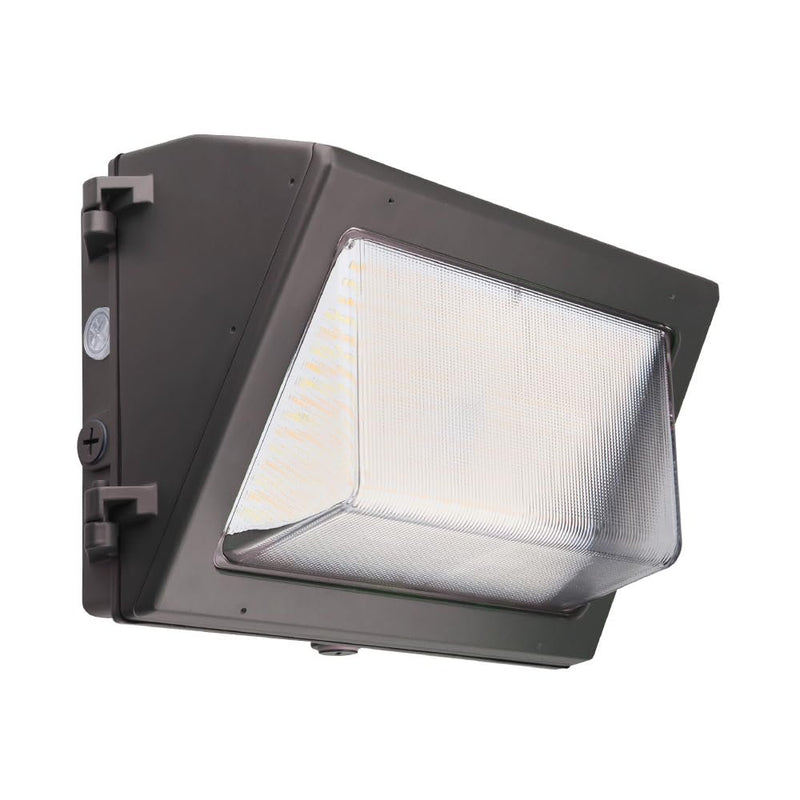

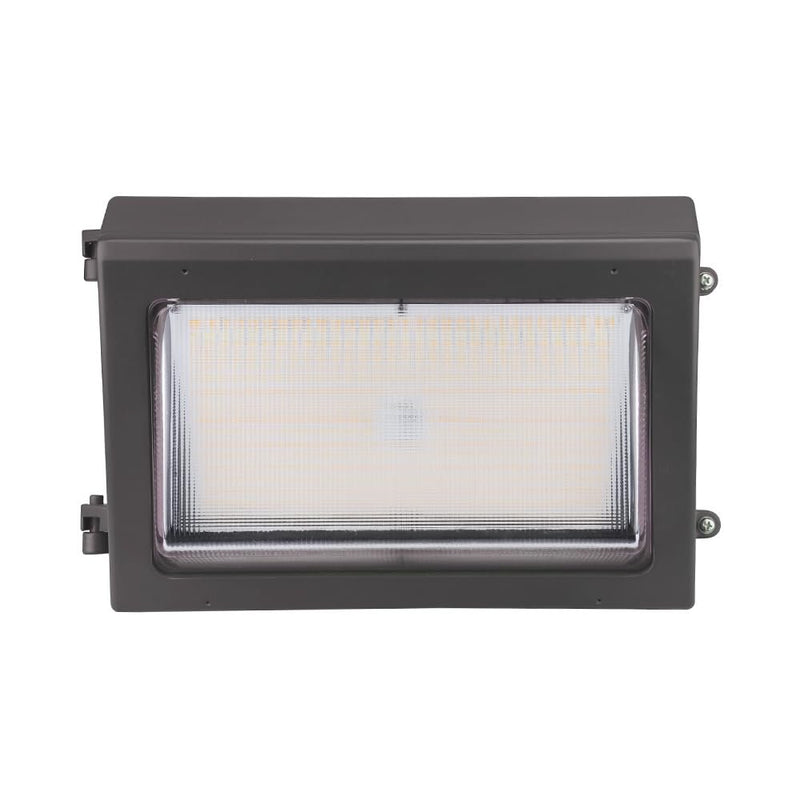

Euri Lighting EWP-80W103sw 16-80W Color Select LED Wall Pack Light

Euri Lighting EWP-80W103sw Wattage & CCT Selectable LED Wall Pack

The Euri Lighting EWP-80W103sw is a commercial LED wall pack with selectable 16/32/48/64/80W and 3000/4000/5000K, 0-10V dimming, bypassable photocell, and IP65 wet-rated aluminum housing on 120–277V — up to ~11,600 lumens.



Key Features

• 5 wattage selectable 16/32/48/64/80W
• 3CCT selectable 3000/4000/5000K
• Up to 11,600 lumens (~157 lm/W)
• 0-10V dimming
• Integrated bypassable photocell
• Universal 120–277V
• IP65 wet rated aluminum + PC lens
• DLC Premium / UL listed class (see QPL)



Specifications

• Item Number: EWP-80W103sw
• OEM Model: EWP-80W103sw
• Brand: Euri Lighting
• Type: Commercial LED wall pack
• Wattage: 16 / 32 / 48 / 64 / 80W selectable
• Lumens: ~2500 / 5000 / 7250 / 9500 / 11600 lm
• CCT: 3000K / 4000K / 5000K
• CRI: 80+
• Input Voltage: 120–277 VAC
• Dimming: 0-10V
• Beam Angle: 110°
• Sensor: Photocell (bypassable); microwave sensor port
• Finish: Bronze
• IP Rating: IP65
• Size: 7 in - 15 in
• Location Rating: Wet rated
• Lifespan: 50,000 hours
• Warranty: 5-Year (mfr)



Compatible Loads

• 120–277V commercial lighting circuits
• 0-10V dimming systems rated for LED loads
• Wet-location building exteriors and loading docks



Compatible With / Replaces

• Up to ~250W metal halide wall packs
• Fixed-wattage LED wall packs
• Non-dimmable outdoor wall packs when 0-10V control is needed



Common Applications

• Warehouses and loading docks
• Building perimeters
• Parking and commercial exteriors



Why Buy from Euri Lighting?

• Wide wattage and CCT field selectability
• 0-10V dimming + photocell options
• High-efficacy IP65 construction
• 120–277V commercial coverage
