LEDVANCE 61527 Lumen Selectable 2x2 LED Troffer Door Kit - 5000K, 20-30W, 120-277V

SKU 61527
195 in stock, ready to be shipped
Original price $87.11 - Original price $87.11
Original price
$87.11 - $87.11
Current price $87.11

Fast & Free Delivery, 30-Day Easy Returns. Read full refund policy

Estimated Shipping Widget will be displayed here! (with custom color)

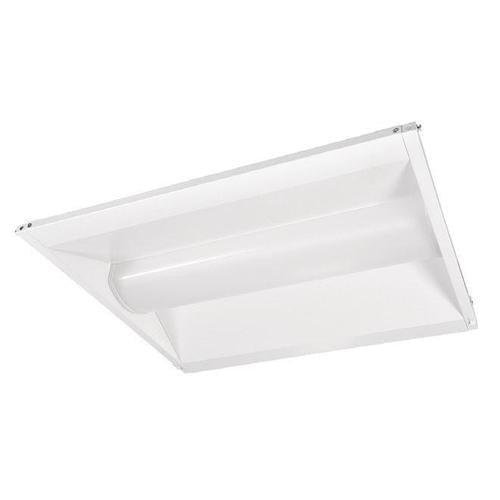

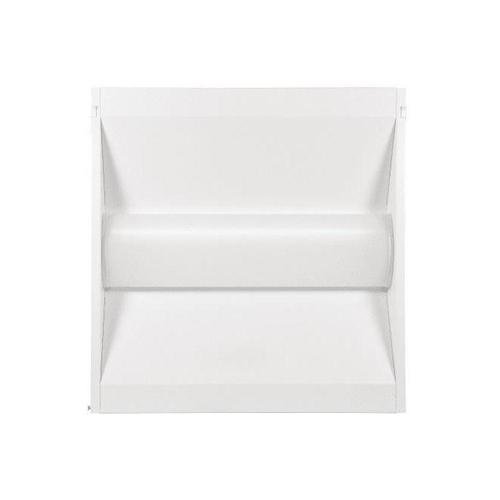

Sylvania LEDVANCE 61527 ValueLED™ lumen selectable 2x2 LED troffer door kit is an integrated, indoor dimmable retrofit kit.  The LEDVANCE RDORKIT5AS030UNVD85022UWH comes with a white post-painted finish and a frosted lens.  Available in cool white (5000K) light the Sylvania door kit allows for select lumens by operating at 20 watt, 25 watt or 30 watt. The 0-10V dimming, 120-277V retrofit kit is ideal for recessed grid ceilings.  The Sylvania troffer retrofit door kits are a preferable LED alternative for retrofitting traditional fluorescent troffer luminaires. Enjoy up to 60% energy savings when compared to fluorescent models, and even more up-front savings with their DLC Premium listing when utilizing local energy utility rebates.  LEDVANCE is also known as Sylvania.  This product is also known as Sylvania 61527 or Sylvania RDORKIT5AS030UNVD85022UWH

Replaces 2, 3 and 4-lamp T8 fluorescent 2x2 troffer fixtures.


Brand:  LEDVANCE Type:  Retrofit
Light:  LED Lamp:  Integrated
Lens:  Frosted Driver:  0-10V Dim
Lumens:  2500, 3125, 3750 Wattage:  20W, 25W, 30W
Voltage:  120-277 VAC CCT:  5000K
CRI:  80+ Lifespan:  50,000hrs

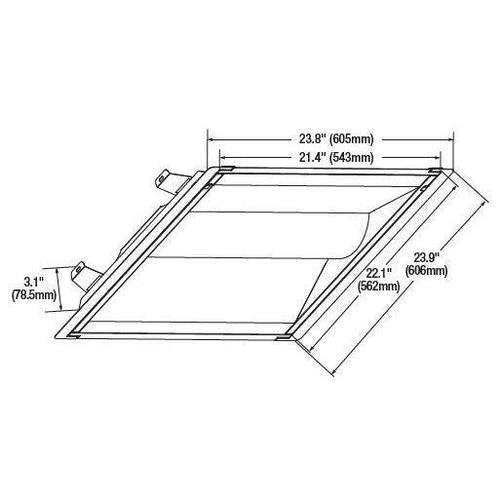

Certifications:  UL, DLC Length:  23.80"
Width:  23.90" Height:    3.10"


LEDVANCE ValueLED Troffer Door Kit  Specifications

LEDVANCE ValueLED Troffer Door Kit Installation Sheet


  • 2x2 Recessed Troffers
  • Retail
  • Hospitals
  • Offices
  • Commercial Lighting
  • Indoor
  • Damp Rated


  • Instant On
  • Dimmable (0-10V)
  • Mercury Free
  • Energy Star Compliance
  • 50,000 hrs of lifespan


    • 30 day Seller Warranty
    • 5 year Limited MFG Warranty


    Visible Light Colors

    Use the correlated color temperature to get the exact color

    Light Color Guide
