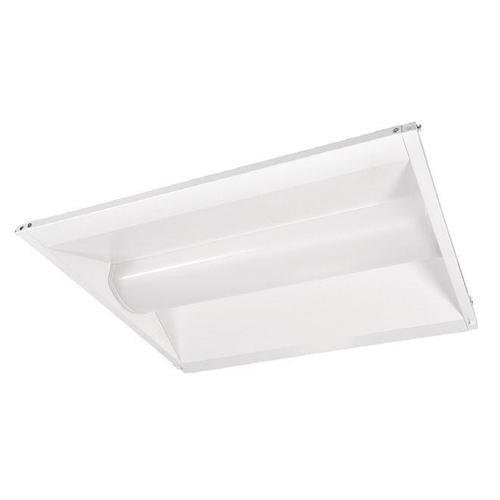

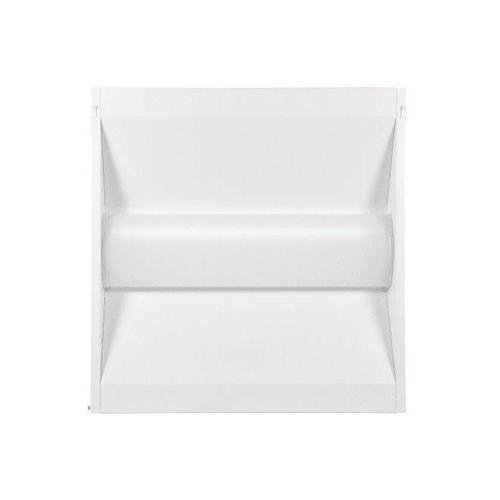

LEDVANCE 61526 Lumen Selectable 2x2 LED Troffer Door Kit - 4000K, 20-30W, 120-277V

Sylvania LEDVANCE 61526 ValueLED™ lumen selectable 2x2 LED troffer door kit is an integrated, indoor dimmable retrofit kit.  The LEDVANCE RDORKIT5AS030UNVD84022UWH comes with a white post-painted finish and a frosted lens.  Available in natural white (4000K) light, the Sylvania door kit allows for select lumens by operating at 20 watt, 25 watt or 30 watt. The 0-10V dimming, 120-277V retrofit kit is ideal for recessed grid ceilings.  The Sylvania troffer retrofit door kits are a preferable LED alternative for retrofitting traditional fluorescent troffer luminaires. Enjoy up to 60% energy savings when compared to fluorescent models, and even more up-front savings with their DLC Premium listing when utilizing local energy utility rebates.  LEDVANCE is also known as Sylvania.  This product is also known as Sylvania 61526 or Sylvania RDORKIT5AS030UNVD84022UWH

Replaces 2, 3 and 4-lamp T8 fluorescent 2x2 troffer fixtures.



Brand:	LEDVANCE	Type:	Retrofit
Light:	LED	Lamp:	Integrated
Lens:	Frosted	Driver:	0-10V Dim
Lumens:	2500, 3125, 3750	Wattage:	20W, 25W, 30W
Voltage:	120-277 VAC	CCT:	4000K
CRI:	80+	Lifespan:	50,000hrs

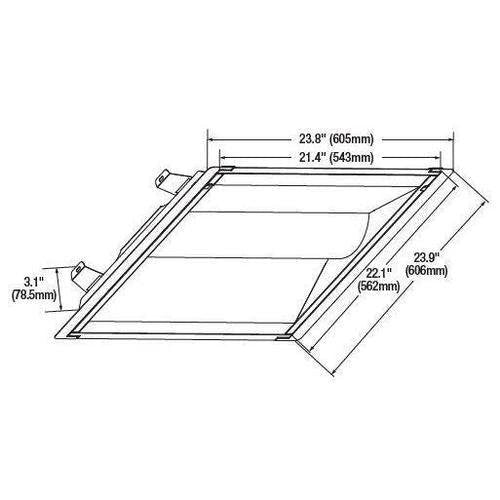

Certifications:	UL, DLC	Length:	23.80"
Width:	23.90"	Height:	3.10"



LEDVANCE ValueLED Troffer Door Kit  Specifications

LEDVANCE ValueLED Troffer Door Kit Installation Sheet



• 2x2 Recessed Troffers
• Retail

• Hospitals
• Offices
• Commercial Lighting
• Indoor
• Damp Rated



• Instant On
• Dimmable (0-10V)
• Mercury Free
• Energy Star Compliance
• 50,000 hrs of lifespan



• 30 day Seller Warranty
• 5 year Limited MFG Warranty



Sylvania LEDVANCE 61526 ValueLED™ lumen selectable 2x2 LED troffer door kit is an integrated, indoor dimmable retrofit kit.  The LEDVANCE RDORKIT5AS030UNVD84022UWH comes with a white post-painted finish and a frosted lens.  Available in natural white (4000K) light, the Sylvania door kit allows for select lumens by operating at 20 watt, 25 watt or 30 watt. The 0-10V dimming, 120-277V retrofit kit is ideal for recessed grid ceilings.  The Sylvania troffer retrofit door kits are a preferable LED alternative for retrofitting traditional fluorescent troffer lumi
