Leviton OSFHU-ITW High Bay Occupancy Sensor – PIR Fixture Mount, 120-347V
The Leviton OSFHU-ITW High Bay Occupancy Sensor is a passive infrared (PIR) high-bay motion sensor designed to automatically control lighting in warehouses, manufacturing facilities, commercial buildings, and other high-ceiling applications. The fixture-mount occupancy sensor detects movement within its field of view and automatically turns connected lights on when occupancy is detected.

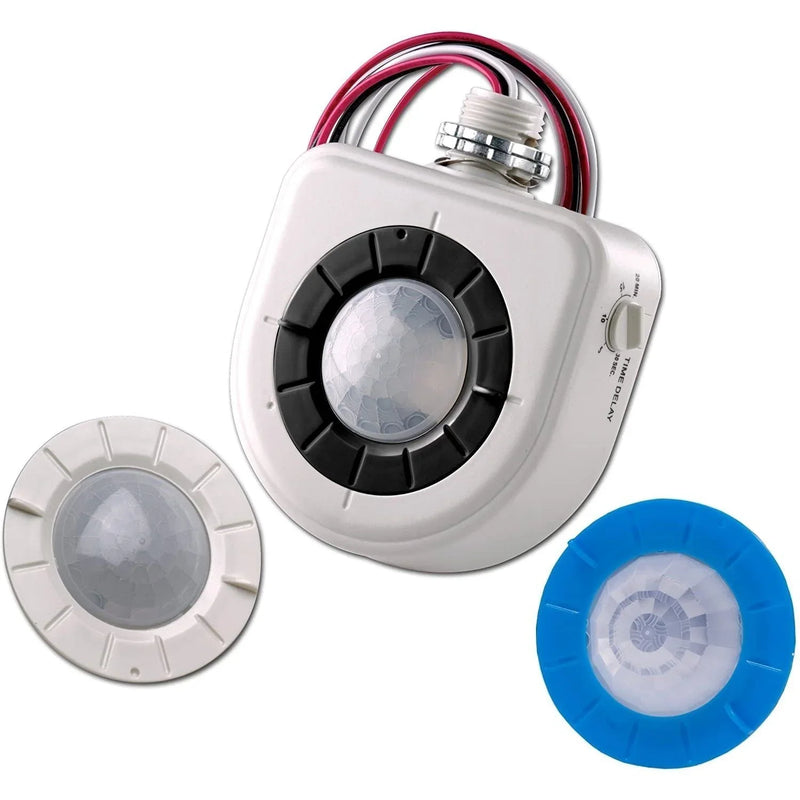

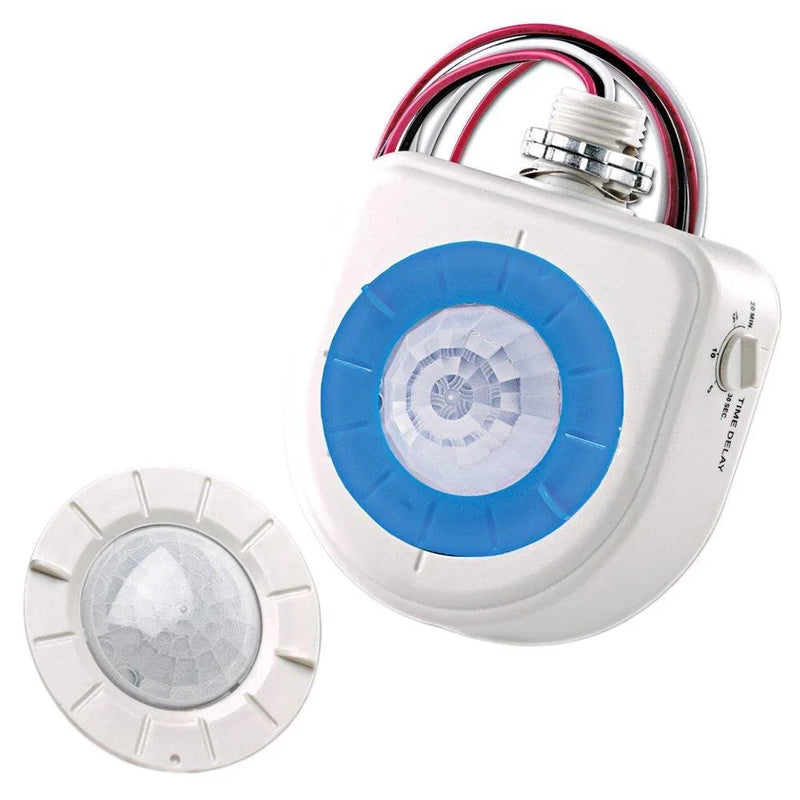

Designed for mounting heights from 8 to 40 feet, the OSFHU-ITW includes three interchangeable lenses to provide the right detection pattern for different applications: a 360° low-bay lens for 8'-20', a 360° high-bay lens for 20'-40', and a 180° aisle lens for targeted aisle coverage.
The self-contained PIR sensor and relay can control individual light fixtures based on occupancy in the detection zone. Once motion is no longer detected, the lights remain on until the adjustable time-delay expires, helping provide automatic lighting control while reducing unnecessary energy consumption.
High Bay PIR Motion Sensor for 120-347V Lighting
The Leviton OSFHU-ITW operates on a wide range of voltages, including 120V, 208V, 220V, 230V, 240V, 277V, and 347V AC at 50/60Hz. Its quick-snap threaded nipple and easy wiring connection make installation convenient when mounting directly to compatible light fixtures or electrical junction boxes.
This high bay motion sensor is ideal for applications where automatic occupancy-based lighting control is needed, including warehouses, distribution centers, manufacturing facilities, industrial spaces, commercial buildings, and other indoor high-ceiling areas.
3 Interchangeable Lenses for Flexible Coverage
-
360° Low-Bay Lens: Designed for mounting heights of approximately 8'-20'
-
360° High-Bay Lens: Designed for mounting heights of approximately 20'-40'
-
180° Aisle Lens: Provides directional coverage for aisle applications
Leviton OSFHU-ITW Features
- Passive infrared (PIR) high bay occupancy sensor
- Designed for high-bay and low-bay lighting applications
- Fixture-mount design for direct installation on compatible light fixtures or junction boxes
- Includes 3 interchangeable lenses: 360° low bay, 360° high bay, and 180° aisle
- Mounting heights from approximately 8 to 40 feet
- Wide operating voltage range from 120-347V AC
- 50/60Hz operation
- Adjustable time delay
- Quick-snap threaded nipple for convenient installation
- Instant start-up
- Self-contained sensor and relay
- Automatically turns lighting on when motion is detected
- Automatically turns lighting off after occupancy ends and the time delay expires
- UL certified
- Damp rated
- Designed for indoor commercial, industrial, agricultural, and residential applications
Applications
- Warehouses and distribution centers
- Manufacturing facilities
- Industrial buildings
- Commercial buildings
- High-bay and low-bay fixtures
- Storage facilities
- Indoor high-ceiling areas
- Aisle lighting applications
- Agricultural facilities
Specifications
| Brand |
Leviton |
| Model |
OSFHU-ITW |
| Type |
High Bay Occupancy Sensor |
| Technology |
Passive Infrared (PIR) |
| Mounting |
Fixture Mount |
| Lenses |
360° Low Bay, 360° High Bay, 180° Aisle |
| Mounting Height |
8'-40' |
| Voltage |
120/208/220/230/240/277/347V AC |
| Frequency |
50/60Hz |
| Power Consumption |
2W |
| Certification |
UL |
| Rating |
Damp Rated |
Why Choose the Leviton OSFHU-ITW?
The Leviton OSFHU-ITW combines PIR occupancy detection, flexible lens options, and wide-voltage compatibility in a compact fixture-mount design. With coverage options for mounting heights from 8 to 40 feet, it is a versatile solution for high-bay lighting control, warehouse lighting, industrial lighting, and commercial lighting applications.
Warranty: 30-day LeanLight seller warranty and 3-year limited manufacturer's warranty.
Download:
OSFHU-ITW Specifications Sheet
OSFHU-ITW Installation Instructions
