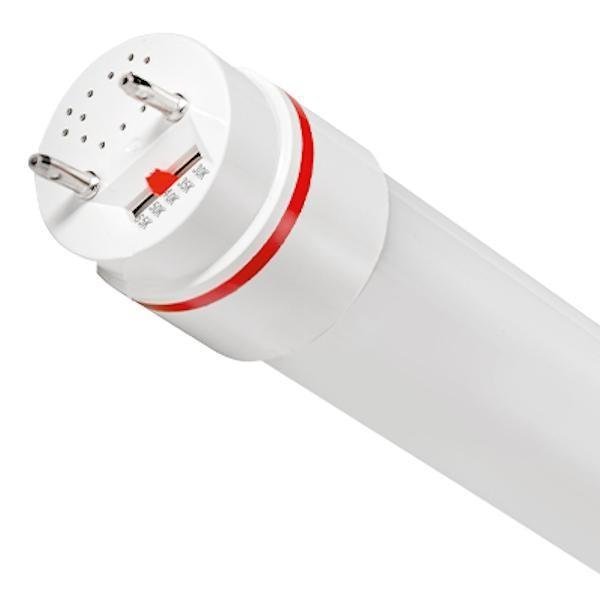

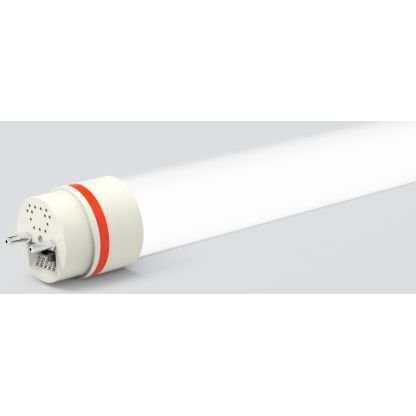

Keystone KT-LED7T8-24G8CSJ-DX2 7W 2ft Color Select T8 LED Tube (25 Pack)

Keystone KT-LED7T8-24G8CSJ-DX2 2ft Type B T8 LED Tube – 7W Color Select DX2 (25 Pack)

The Keystone Technologies KT-LED7T8-24G8CSJ-DX2 is a 7W 2ft Type B Direct Drive T8 LED tube with Color Select 3000K / 3500K / 4000K / 5000K / 6500K. DX2 wiring works single-ended or double-ended on 120-277V after the ballast is bypassed. 25-pack case for fixture upgrades.



Key Features

• Type B ballast bypass with DX2 single- or double-ended wiring
• 7W Color Select T8 LED

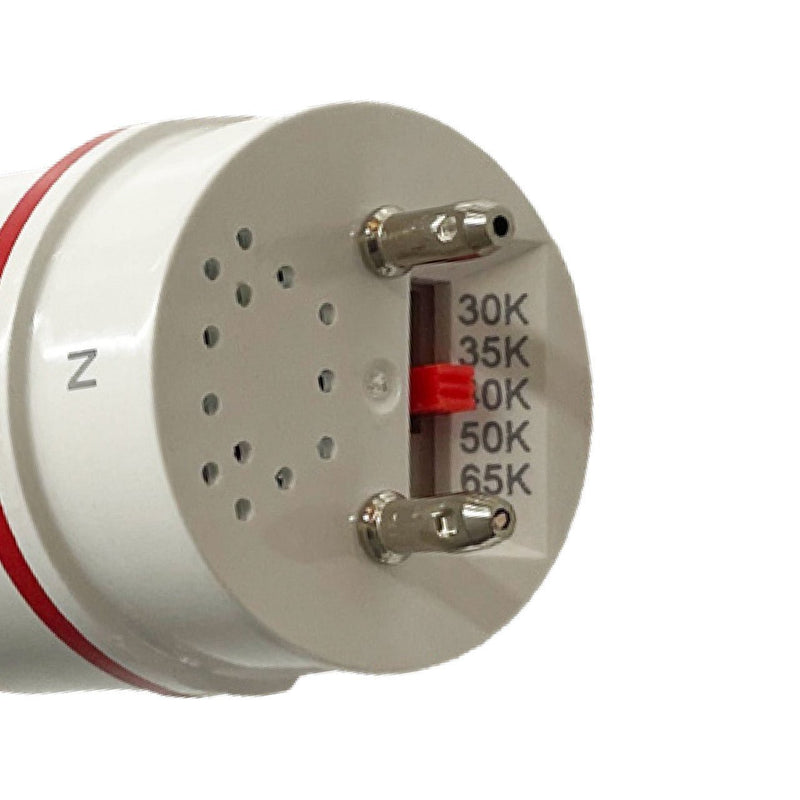

• 3000K / 3500K / 4000K / 5000K / 6500K (ships preset 4000K)
• Works with shunted or non-shunted G13 lampholders
• Frosted glass lens
• 120-277V
• DLC Listed
• 50,000-hour rated life and 5-year warranty
• Case of 25 tubes



Specifications

• Model: KT-LED7T8-24G8CSJ-DX2
• Brand: Keystone Technologies
• Pack Quantity: 25 Tubes
• Lamp Type: T8 LED (Linear)
• Operation: Type B – Direct Drive / Ballast Bypass (Single or Double-Ended)
• Base: G13 Medium Bi-Pin
• Wattage: 7W
• Color Temperature: 3000K / 3500K / 4000K / 5000K / 6500K Color Select
• CRI: >80
• Input Voltage: 120-277V
• Dimensions: Nominal 2ft
• Rated Life: 50,000 hours
• Warranty: 5 Years

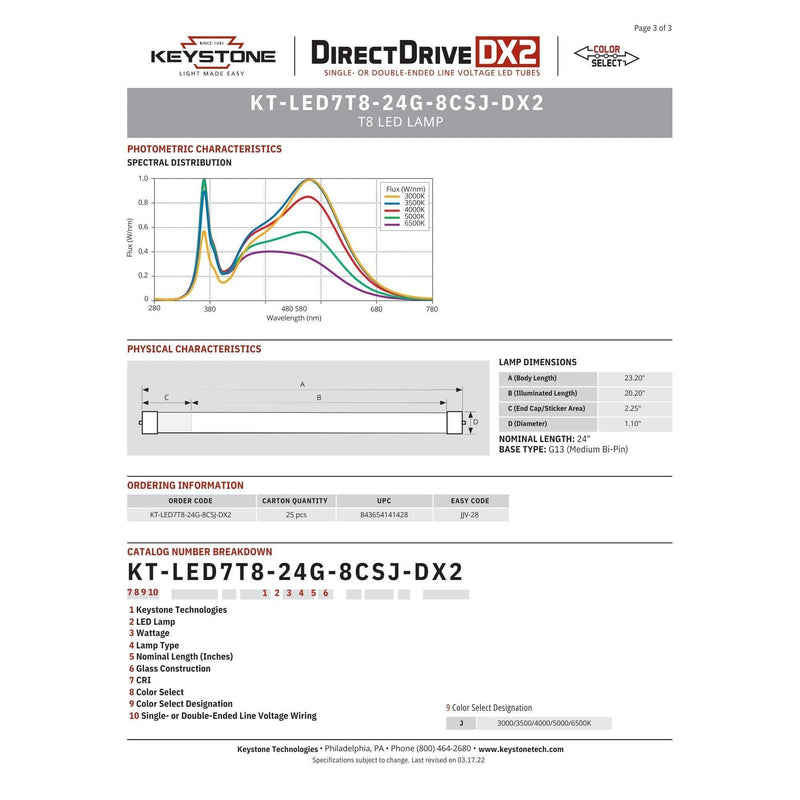

KT-LED7T8-24G8CSJ-DX2 spec sheet



Compatible Sockets

• DX2 works with shunted or non-shunted sockets
• Leviton 23660-SWP – shunted tall T8 snap-in
• Leviton 13660-SWP – non-shunted tall T8 snap-in



Replaces

• F17T8 fluorescent tubes in any common CCT
• Other Color Select Type B T8 LED tubes



Common Applications

• Offices, retail, and multi-use spaces
• Ballast-bypass retrofits



Why Buy from Keystone Technologies?

• Direct Drive Type B DX2 – single- or double-ended wiring
• DLC Listed
• 5-year manufacturer warranty
