Leviton 4570-C NEMA L6-15P 15A 250V Industrial Grade Locking Plug

Leviton 4570-C NEMA L6-15P 15A 250V Industrial Grade Locking Plug – Twist-Lock Power Connection

Shop the Leviton 4570-C – a heavy-duty NEMA L6-15P 15 Amp 250 Volt industrial grade locking plug built for demanding commercial and industrial applications. This Black & White twist-lock plug features a super tough nylon body, solid brass blades, and a cord clamp that accepts a wide range of cord sizes for secure, reliable connections. Pairs with Leviton L6-15R receptacles.



Key Features

• NEMA L6-15P configuration – 15A 250V industrial grade locking plug
• Black & White industrial grade construction
• Super tough nylon body resists impact, abrasion, and chemicals
• Solid brass blades for maximum conductivity and long life
• Cord clamp accepts 0.230"–0.685" diameter cords
• Captive quick-drive assembly screws for faster wiring
• 2-pole, 3-wire grounding
• Limited lifetime warranty from Leviton



Specifications

• Model: 4570-C
• Brand: Leviton

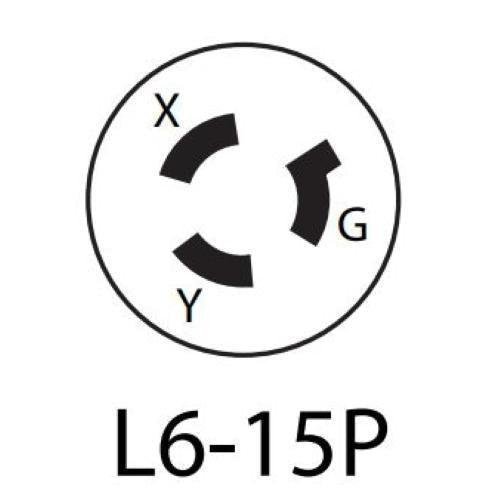

• NEMA Configuration: L6-15P
• Amperage: 15 Amp
• Voltage: 250 Volt
• Type: Industrial Grade Locking Plug (Male)
• Poles / Wires: 2-Pole, 3-Wire Grounding
• Body Material: Impact Modified Nylon
• Color: Black-White
• Cord Range: 0.230"–0.685"
• Terminal Accommodates: 18–10 AWG
• Horsepower Rating: 1.5 HP

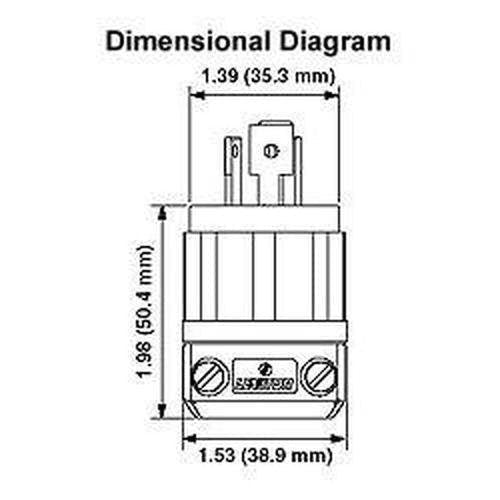

• Dimensions: 1.53" Diameter × 1.98" L
• Operating Temperature: -40°C to 60°C
• Certifications: UL Listed, CSA, NEMA WD-6, ANSI C-73
• Warranty: Limited Lifetime

Leviton Black & White Plug installation instructions



Common Applications

• Commercial and industrial power cords
• 250V equipment connections
• Warehouses and industrial machinery
• Equipment requiring secure twist-lock connections
• Pairs with Leviton L6-15R receptacles (4560)



Why Buy from Leviton?

• Industry-leading Black & White industrial grade locking devices
• Built for severe commercial and industrial environments
• Superior materials and manufacturing standards
• Limited lifetime warranty on this product
