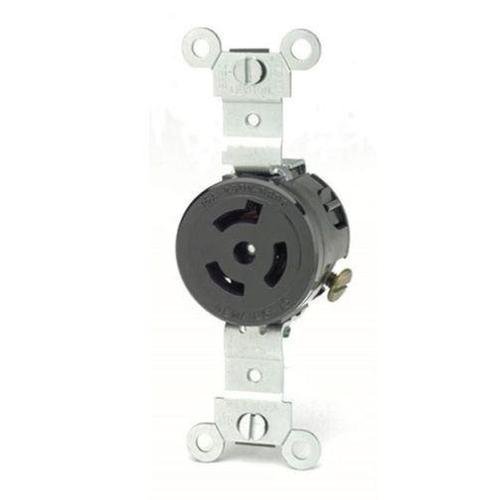

Leviton 4560 NEMA L6-15R 15A 250V Single Locking Receptacle – Industrial Grade Twist-Lock Outlet
Shop the Leviton 4560 – a heavy-duty NEMA L6-15R 15 Amp 250 Volt single locking receptacle built for demanding commercial and industrial applications. This industrial-grade twist-lock outlet features a tough nylon body, brass contacts, and side wiring for reliable, secure power connections.
Key Features
- NEMA L6-15R configuration – 15A 250V locking receptacle
- Single flush-mount design
- Industrial grade construction for severe environments
- Tough nylon body resists impact, abrasion, and chemicals
- Brass contacts for maximum durability and conductivity
- Side wiring for flexible installation
- 2-pole, 3-wire grounding
- Limited lifetime warranty from Leviton
Specifications
-
Model: 4560
-
Brand: Leviton
-

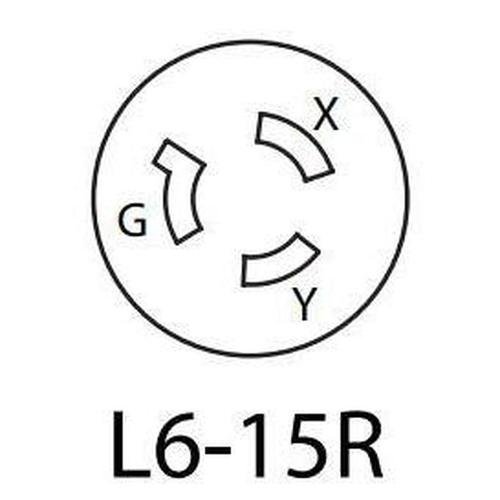

NEMA Configuration: L6-15R
-
Amperage: 15 Amp
-
Voltage: 250 Volt
-
Type: Single Flush Mount Locking Receptacle
-
Poles / Wires: 2-Pole, 3-Wire Grounding
-
Wiring: Side
-
Body Material: Nylon
-
Color: Black
-
Terminal Accommodates: 18–10 AWG
-
Horsepower Rating: 1.5 HP
-
Dimensions: 4.08" H × 1.38" W × 1.20" D
-
Operating Temperature: -40°C to 60°C
-
Certifications: UL Listed, CSA, NEMA WD-6, ANSI C-73
-
Warranty: Limited Lifetime
L6-15R install instructions
L6-15R wiring diagram
L6-15R dimensions sheet
Common Applications
- Commercial and industrial facilities
- 250V equipment and machinery
- Lighting and energy management systems
- Equipment requiring secure twist-lock connections
- Replacement for existing L6-15R receptacles
Why Buy from Leviton?
- Industry-leading industrial grade locking devices
- Built for severe commercial and industrial environments
- Superior materials and manufacturing standards
- Limited lifetime warranty on this product
Why Buy from LeanLight?
- Fast & free shipping on every order (ships from Georgia)
- Volume and project discounts available
- 30-day satisfaction guarantee with easy returns
- Georgia-based lighting specialists since 2008
Leviton 4560 is an industrial-grade 15A 250V locking receptacle built to provide unparalleled quality and superior performance in the most severe industrial settings. The female style outlet combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability. 15 Amp, 250 Volt, Single Twist Lock Receptacle, Industrial Grade, Grounding, Black. NEMA L6-15R, 2P, 3W
| Brand: |
Leviton |
NEMA: |
L6-15R |
| Type: |
Female |
Connection: |
Locking |
| Color: |
Black |
Blades: |
Brass |
| Amperage: |
15A |
Voltage: |
250 VAC |
| Pole: |
2 |
Wire: |
3
|
| Certifications: |
UL, ANSI |
Height: |
4.08" |
| Width: |
1.38" |
Depth: |
1.20"
|
- Lighting
- Energy Management
- Security
- Commercial/Industrial
- Indoor Applications
- Dry Rated
- Brass Connectors
- Nylon Face
- Flush Mount
- 14-8 AWG Solid or Stranded Wire
- 30 day Seller Warranty
- Lifetime MFG Warranty
Leviton 4560 is an industrial-grade 15A 250V locking receptacle built to provide unparalleled quality and superior performance in the most severe industrial settings. The female style outlet combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability. 15 Amp, 250 Volt, Single Twist Lock Receptacle, Industrial Grade, Grounding, Black. NEMA L6-15R, 2P, 3W
