2340 | NEMA L8-20R Industrial-Grade 20 Amp 480 Volt Locking Receptacle - 2 Pole, 3 Wire-LeanLight

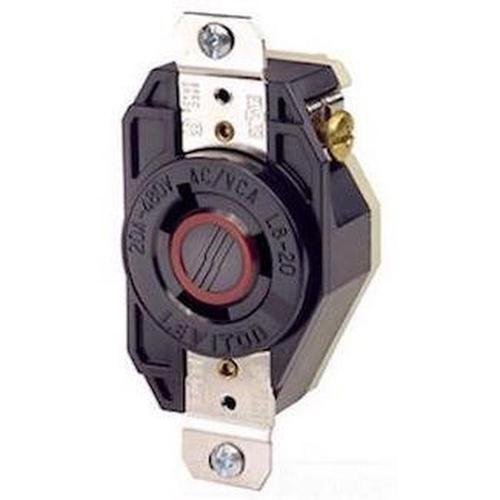

Leviton 2340 NEMA L8-20R 20 Amp 480 Volt Locking Receptacle - 2 Pole, 3 Wire

by Leviton
SKU 2340
Availability:
80 in stock, ready to be shipped
$16.45 - $16.45
$16.45
$16.45 - $16.45
$16.45

Estimated Shipping Widget will be displayed here! (with custom color)

Leviton 2340 is a NEMA L8-20R industrial-grade 480 volt locking receptacle is built to provide unparalleled quality and superior performance in the most severe industrial settings. The female style outlet combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability. The 2 pole, 3 wire 20 Amp, 480 Volt, Single Locking Receptacle.  Backed by a Lifetime Warranty

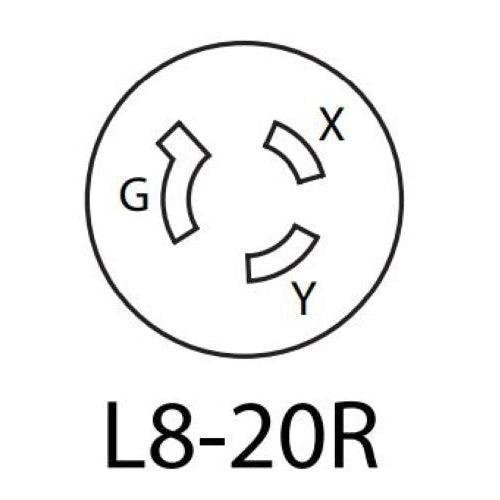

Brand:  Leviton NEMA:  L8-20R
Type:  Female Connection:  Locking
Color:  Black Blades:  Brass
Amperage:  20A Voltage:  480 VAC
Pole:  2 Wire:  3

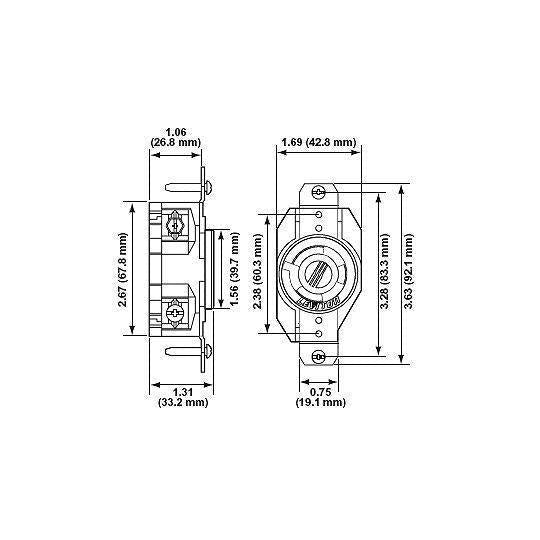

Certifications:  UL, ANSI Height:  3.63"
Width:  1.69" Depth:  1.31"



L8-20R installation instructions



  • Warehouses
  • Lighting
  • Industrial Machinery
  • Commercial/Industrial
  • Indoor Applications
  • Dry Rated



  • Brass Connectors
  • Nylon Face
  • Flush Mount
  • Operating Temperature 40C to 60C
  • 14-8 AWG Solid or Stranded Wire



    • 30 day Seller Warranty
    • Lifetime MFG Warranty
