Leviton 2330 NEMA L7-20R 20A 277V Single Locking Receptacle

Leviton 2330 NEMA L7-20R 20A 277V Locking Receptacle – Industrial Grade Twist-Lock Outlet

Shop the Leviton 2330 – a heavy-duty NEMA L7-20R 20 Amp 277 Volt single locking receptacle built for demanding commercial and industrial applications. This industrial-grade twist-lock outlet features a tough nylon body, brass contacts, and back-and-side wiring for reliable, secure power connections.



Key Features

• NEMA L7-20R configuration – 20A 277V locking receptacle
• Single flush-mount design
• Industrial grade construction for severe environments
• Tough nylon body resists impact, abrasion, and chemicals
• Brass contacts for maximum durability and conductivity
• Back and side wiring for flexible installation
• 2-pole, 3-wire grounding
• Limited lifetime warranty from Leviton



Specifications

• Model: 2330
• Brand: Leviton

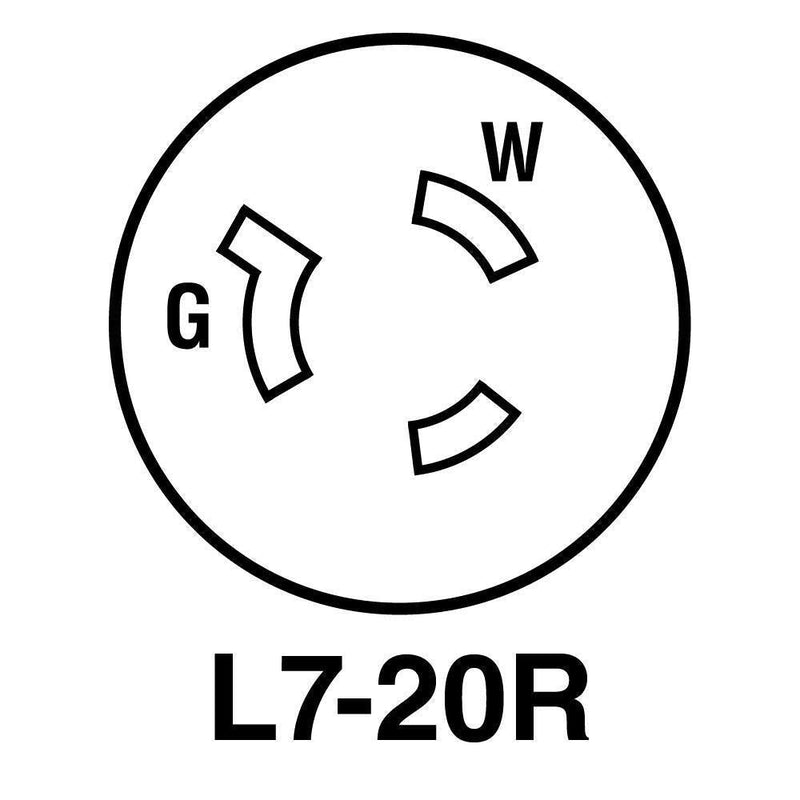

• NEMA Configuration: L7-20R
• Amperage: 20 Amp
• Voltage: 277 Volt
• Type: Single Flush Mount Locking Receptacle
• Poles / Wires: 2-Pole, 3-Wire Grounding
• Wiring: Back and Side
• Body Material: Nylon
• Color: Black
• Terminal Accommodates: 14–8 AWG

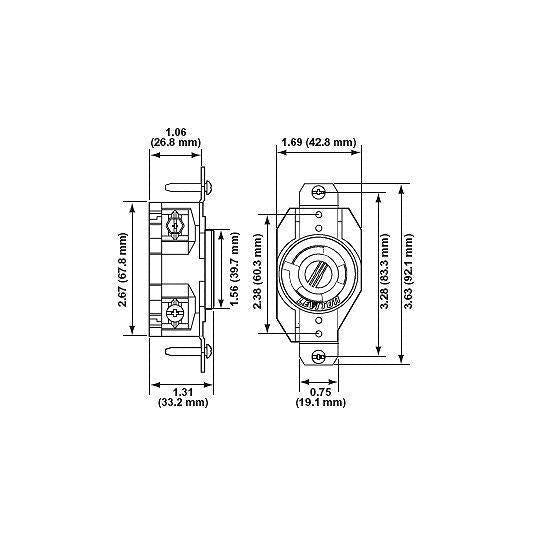

• Dimensions: 3.63" H × 1.69" W × 1.31" D
• Operating Temperature: -40°C to 60°C
• Certifications: UL Listed, CSA, NEMA WD-6, ANSI C-73
• Warranty: Limited Lifetime

Leviton 2330 installation instructions



Common Applications

• Commercial and industrial facilities
• 277V lighting circuits
• Generators and power equipment
• Equipment requiring secure twist-lock connections
• Replacement for existing L7-20R receptacles



Why Buy from Leviton?

• Industry-leading industrial grade locking devices
• Built for severe commercial and industrial environments
• Superior materials and manufacturing standards
• Limited lifetime warranty on this product
