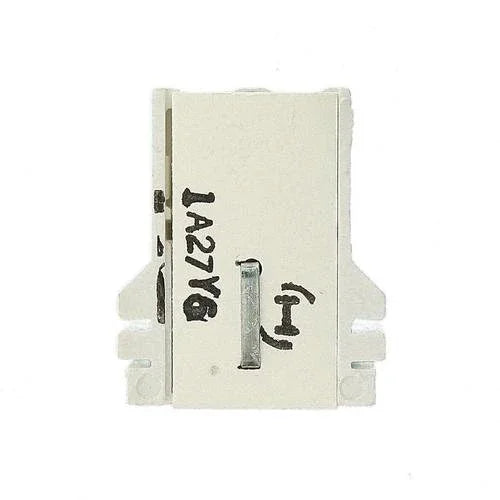

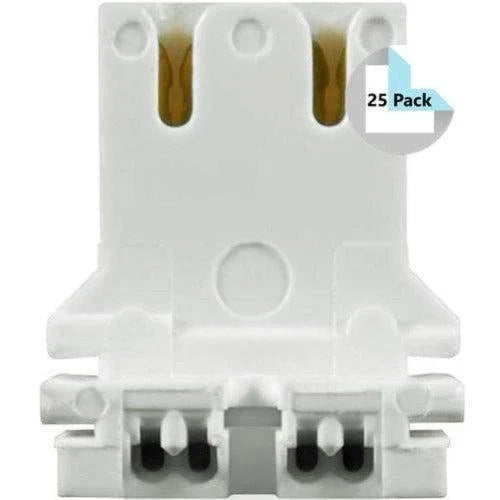

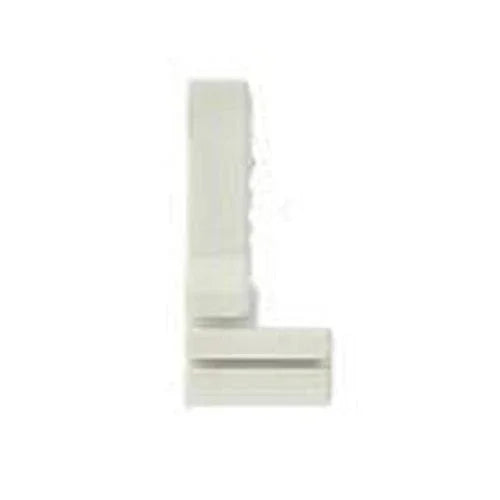

Leviton 13180-U Non-Shunted T8/T12 Slide-On Lampholder – U-Lamp Tombstone (25 Pack)
The Leviton 13180-U is a white slide-on, non-shunted G13 tombstone for T8 and T12 linear and U-bend lamps. Separate Quickwire contacts for programmed-start fluorescent ballasts and Type B single-ended LED tubes that require non-shunted sockets.
Key Features
- Non-shunted (unshunted) G13 medium bi-pin contacts
- Slide-on, self-aligning mount for 18–20 ga fixture panels
- Straight-in double-edge contact for U-bend and linear T8/T12 lamps
- Quick-connect 18 AWG solid or stranded tinned wire
- Thermoset urea body, copper-alloy contacts, white
- Rated 660W, 600V
- UL Listed and NOM Certified
- Case of 25 sockets
Specifications
-
Model: 13180-U
-
Brand: Leviton
-
Pack Quantity: 25 Sockets
-

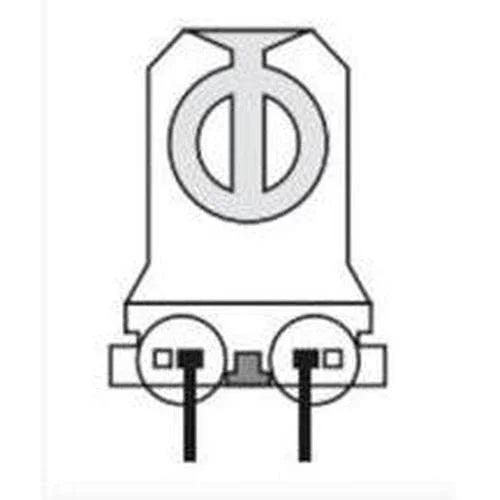

Type: Non-shunted fluorescent / LED tombstone
-
Lamp Base: G13 Medium Bi-Pin
-
Lamp Fit: T8 and T12 linear and U-bend
-
Contact Type: Straight-in double edge
-
Mounting: Slide-on, self-aligning
-
Panel Thickness: 18–20 gauge
-
Termination: Quick-connect, 18 AWG solid or stranded tinned
-
Wire Strip Length: 3/8"
-
Rated Wattage: 660W
-
Rated Voltage: 600V
-
Body Material: Thermoset urea
-
Contact Material: Copper alloy
-
Color: White
-
Dimensions: 1.35" L × 0.72" W × 1.59" H (22 mm lamp axis)
-
Certifications: UL Listed E5833, NOM 057, RoHS
-
Warranty: 1 Year Limited
Leviton Lamp Holder instruction sheet
Compatible With
- Programmed-start T8 and T12 fluorescent ballasts
- T8 / T12 linear and U-bend fluorescent lamps
- Type B single-ended ballast-bypass LED tubes that require non-shunted G13 sockets — Keystone KT-LED15T8 Type B Direct Drive
- Not a shunted instant-start socket — do not use where the fixture needs internally jumped contacts
Replaces
- Broken slide-on U-lamp T8/T12 tombstones
- Satco 80-1257 and other non-shunted U-bend G13 sockets
- Shunted sockets being converted for Type B single-ended LED
Common Applications
- 2x2 U-bend troffers
- T8/T12 strip and wrap fixture socket replacement
- Programmed-start fluorescent maintenance
- Type B LED retrofit when non-shunted tombstones are required
