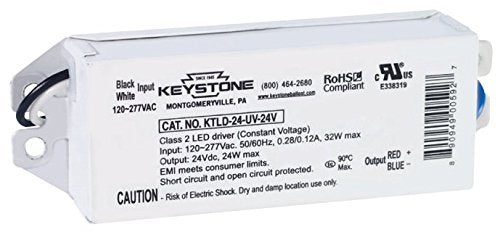

Keystone KTLD-24-UV-24V Constant Voltage LED Driver – 24W 24Vdc
The Keystone Technologies KTLD-24-UV-24V (AK1 case) is a 24W constant-voltage LED driver with fixed 24Vdc output and universal 120-277Vac input. Class 2 steel-case design for dry and damp locations; fixed output (non-dimming).
Key Features
- 24W max constant-voltage LED driver
- Fixed 24Vdc output at up to 1A
- Universal 120-277Vac input
- Class 2 output
- Over current and short circuit protection
- Power factor >0.9; THD <20%
- Type 1 Outdoor — dry and damp locations
- Steel AK1 case
- UL 8750 recognized component
- 5-year manufacturer warranty
Specifications
-
Model: KTLD-24-UV-24V-AK1
-
Brand: Keystone Technologies
-
Driver Type: Constant voltage
-
Max Output Power: 24W
-
Output Voltage: 24Vdc
-
Output Current: 0–1A
-
Input Voltage: 120-277Vac ±10%
-
Input Power: 32W
-
Frequency: 50/60 Hz
-
Max Input Current: 0.28A @120V / 0.13A @277V
-
Power Factor: >0.9
-
THD: <20%
-
Efficiency: 75%
-
Dimming: Fixed output (non-dimming)
-
Class 2: Yes
-
Location Rating: Dry / damp; Type 1 Outdoor
-
Dimensions: 4.80" L × 1.58" W × 0.96" H
-
Mounting Centers: 4.29"
-
Case Style / Material: AK1 / Steel
-
Lead Length: 12" (#18 AWG solid copper)
-
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
-
Max Case Temperature: 194°F (90°C)
-
Life Rating: >50,000 hours at 75°C case
-
Certifications: UL/cUL 8750, FCC Part 15 Class B @120V / Class A @277V
-
Warranty: 5 Years
KTLD-24-UV-24V spec sheet
Compatible Loads
- 24V constant-voltage LED strips, modules, and arrays with onboard current control
- Loads totaling up to 24W / 1A at 24Vdc
- Dry and damp fixtures (not a wet-location sealed driver)
Compatible With / Replaces
- Other 24W Class 2 24Vdc constant-voltage drivers with 120-277V input
- Keystone KTLD-24-UV-24V-AK1 constant-voltage platforms
Common Applications
- 24V LED tape and accent lighting
- Under-cabinet and architectural linear runs
- Sign and channel-letter LED modules
- Commercial and residential 120-277V projects
