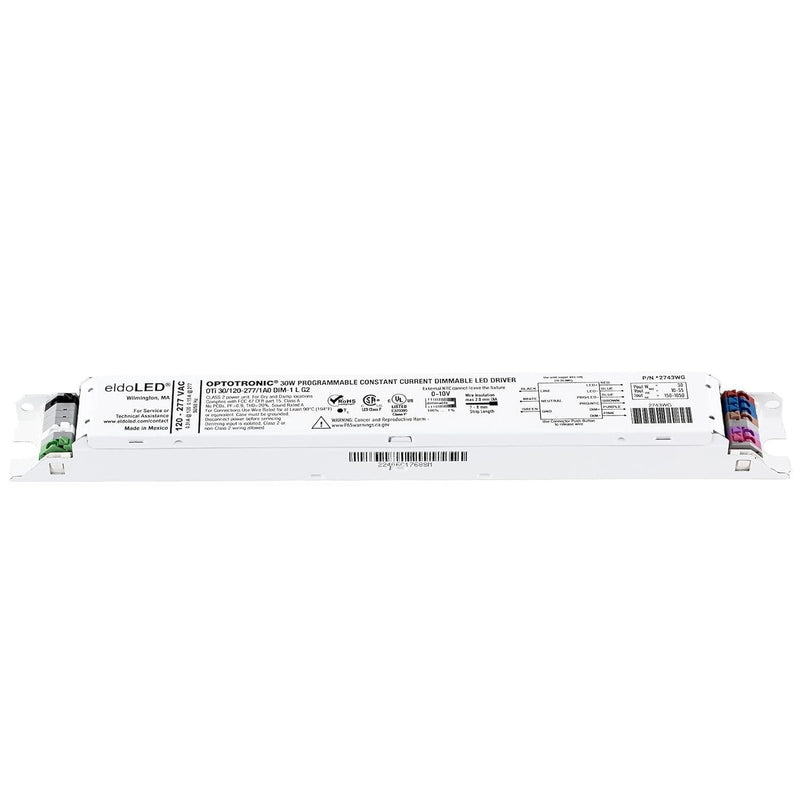

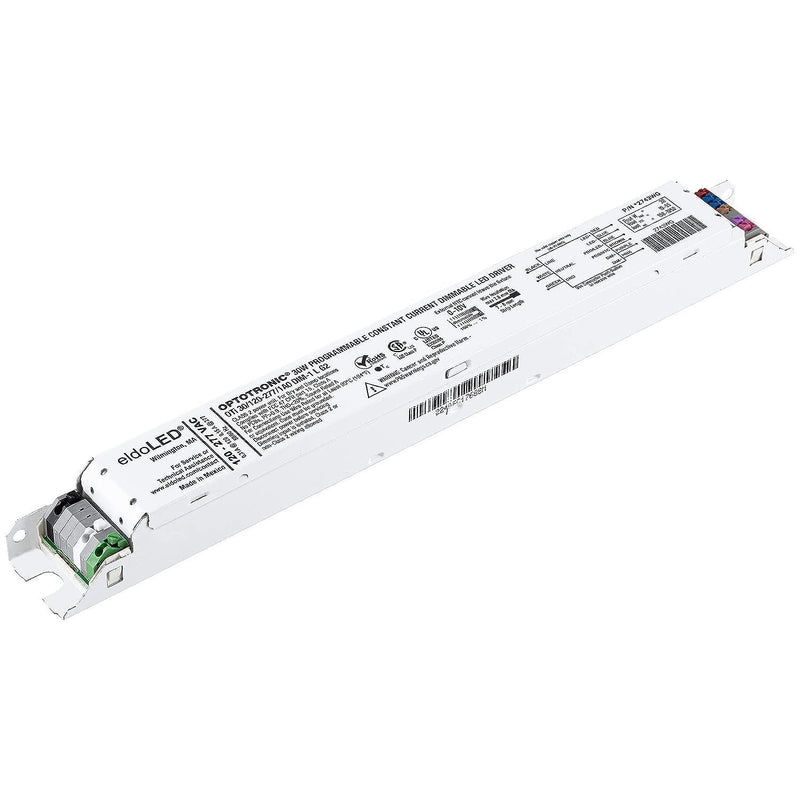

Pack of 10 - eldoLED 2743WG OPTOTRONIC 30W Constant Current 0-10V Dimmable LED Driver, Programmable Linear OTi 30/120-277/1A0 DIM-1 L G2 (Osram 57433)

OPTOTRONIC 30W Linear, Programmable LED Drivers

Product Features

Type: Constant Current, Class 2

Programmable Features:

Output currentDimming levelDim-to-offSoft StartLED thermal protectionAuxiliary output voltageConstant lumen outputEnd-of-life indicator

Output current

Dimming level

Dim-to-off

Soft Start

LED thermal protection

Auxiliary output voltage

Constant lumen output

End-of-life indicator

Input Voltage: 120-277V (+/- 10%)

Frequency Range: 50-60 Hz (+/- 10%)

Max. Output Power (W): 30W

Dimming Control: 0-10V (Isolated)

Dimming Range: 1-100%

Output Voltage (VDC): 10-55VDC

Output Current (mA): 150-1050mA, Default 700 MA

Product Dimensions (L x W x H): 11.00" x 1.14" x 1.00"

Product Weight: 8.2oz

UL Environmental Rating: Dry & Damp

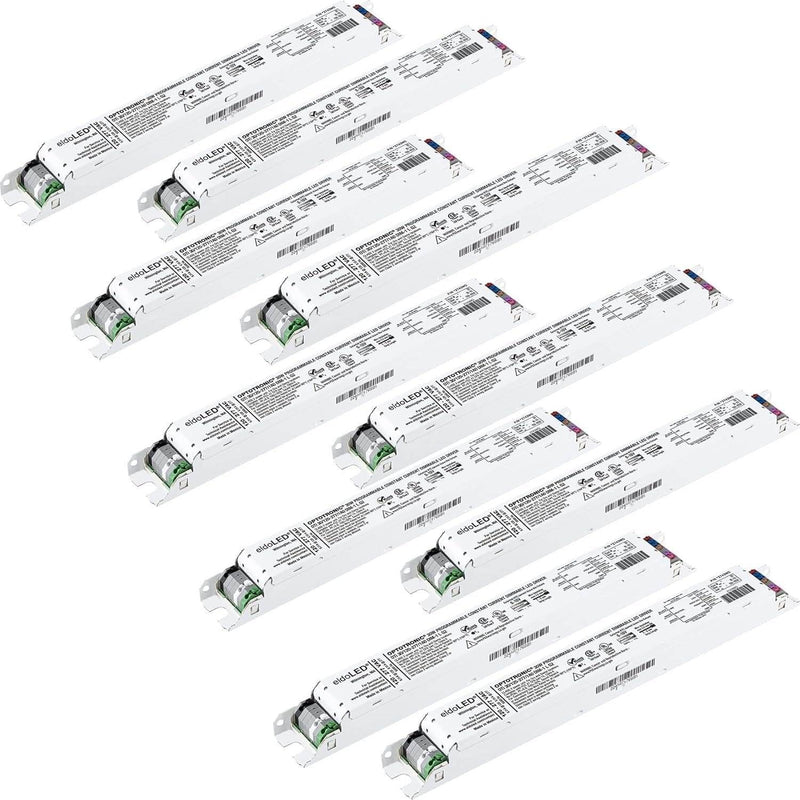

Quantity: 10


Output current

Dimming level

Dim-to-off

Soft Start

LED thermal protection

Auxiliary output voltage

Constant lumen output

End-of-life indicator


Areas of Application

Indirect/direct

Linear

Recessed troffer

• Type: Constant Current, Class 2 (Programmable Linear)
• Output Power: 30W (Max.)
• Input Voltage(VAC): 120-277V (+/- 10%), Output Voltage (VDC): 10-55V DC
• Dimming Control: 0-10V (Isolated)
• Output Current (mA): 150-1050mA, Default 700 MA
