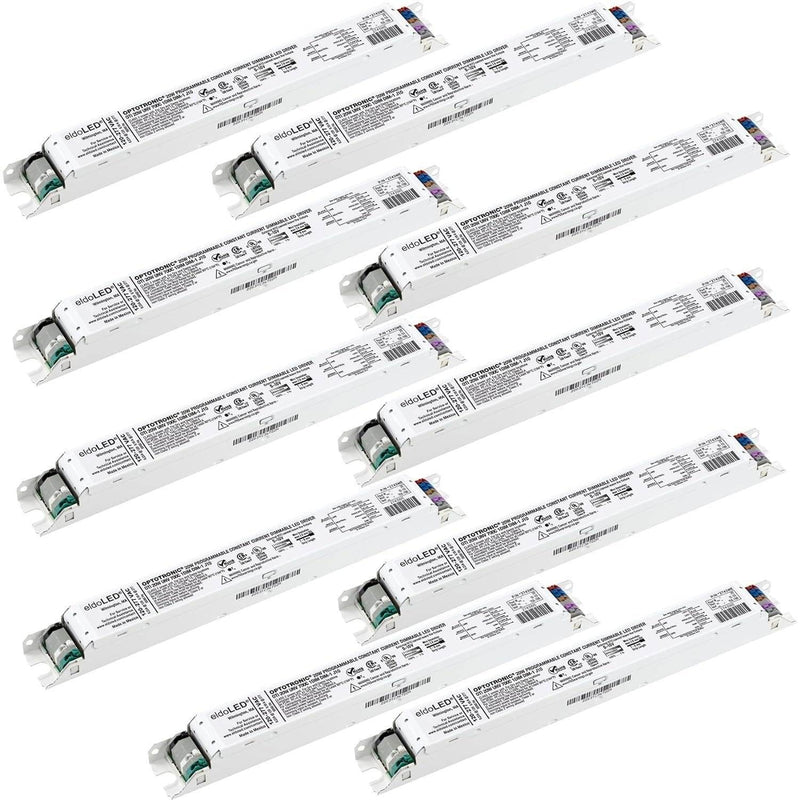

Pack of 10 - eldoLED *2743WE OPTOTRONIC 20W Constant Current 0-10V Dimmable LED Driver, Programmable Linear OTi20/120-277/700DIM-1LG2 (Osram 57431)
by eldoLED
SKU 2743WE-10
Availability:
Only 1 left!
Original price
$266.34
-
Original price
$266.34
Original price
$266.34
$266.34
-
$266.34
Current price
$266.34
Fast & Free Delivery, 30-Day Easy Returns. Read full refund policy
Estimated Shipping Widget will be displayed here! (with custom color)
OPTOTRONIC Linear Programmable LED Drivers
Product Features
Programmable Features:
Output currentDimming levelDim-to-offSoft StartLED thermal protectionAuxiliary output voltageConstant lumen outputEnd-of-life indicator
Output current
Dimming level
Dim-to-off
Soft Start
LED thermal protection
Auxiliary output voltage
Constant lumen output
End-of-life indicator
Input Voltage: 120-277V (+/- 10%)
Frequency Range: 50-60 Hz (+/- 10%)
Max. Output Power (W): 20W
Dimming Control: 0-10V (Isolated)
Dimming Range: 1-100%
Output Voltage (VDC): 10-55VDC
Output Current (mA): 150-700mA (1mA step), Default 350mA
Product Dimensions (L x W x H): 11.00" x 1.14" x 1.00"
Product Weight: 8.3oz
UL Environmental Rating: Dry & Damp
Quantity: 10
Output current
Dimming level
Dim-to-off
Soft Start
LED thermal protection
Auxiliary output voltage
Constant lumen output
End-of-life indicator
Product Family Features
OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
Integrated OEM programmable features include:
Constant lumen maintenanceEnd of life indicationLED thermal protection
Constant lumen maintenance
End of life indication
LED thermal protection
Programming doesn't require powering up or connecting the power supply to AC line voltage
Specification grade dimming down to 1% or 10% on 0-10V dimmers
Available optional auxiliary output to power 12 V, 20 V, and 24 V low power applications
Slim form factors
Input voltage:
Universal 120-277 VAC 50/60Hz347 VAC 50/60 Hz
Universal 120-277 VAC 50/60Hz
347 VAC 50/60 Hz
UL Class 2 output for safe operation, Class P
Constant lumen maintenance
End of life indication
LED thermal protection
Universal 120-277 VAC 50/60Hz
347 VAC 50/60 Hz
Areas of Application
Indirect/direct
Linear
Recessed troffer
Product Features
Programmable Features:
Output currentDimming levelDim-to-offSoft StartLED thermal protectionAuxiliary output voltageConstant lumen outputEnd-of-life indicator
Output current
Dimming level
Dim-to-off
Soft Start
LED thermal protection
Auxiliary output voltage
Constant lumen output
End-of-life indicator
Input Voltage: 120-277V (+/- 10%)
Frequency Range: 50-60 Hz (+/- 10%)
Max. Output Power (W): 20W
Dimming Control: 0-10V (Isolated)
Dimming Range: 1-100%
Output Voltage (VDC): 10-55VDC
Output Current (mA): 150-700mA (1mA step), Default 350mA
Product Dimensions (L x W x H): 11.00" x 1.14" x 1.00"
Product Weight: 8.3oz
UL Environmental Rating: Dry & Damp
Quantity: 10
Output current
Dimming level
Dim-to-off
Soft Start
LED thermal protection
Auxiliary output voltage
Constant lumen output
End-of-life indicator
Product Family Features
OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
Integrated OEM programmable features include:
Constant lumen maintenanceEnd of life indicationLED thermal protection
Constant lumen maintenance
End of life indication
LED thermal protection
Programming doesn't require powering up or connecting the power supply to AC line voltage
Specification grade dimming down to 1% or 10% on 0-10V dimmers
Available optional auxiliary output to power 12 V, 20 V, and 24 V low power applications
Slim form factors
Input voltage:
Universal 120-277 VAC 50/60Hz347 VAC 50/60 Hz
Universal 120-277 VAC 50/60Hz
347 VAC 50/60 Hz
UL Class 2 output for safe operation, Class P
Constant lumen maintenance
End of life indication
LED thermal protection
Universal 120-277 VAC 50/60Hz
347 VAC 50/60 Hz
Areas of Application
Indirect/direct
Linear
Recessed troffer
- Max. Output Power (W): 20W
- Input Voltage: 120-277V (+/- 10%)
- Output Voltage (VDC): 10-55VDC / Output Current (mA): 150-700mA (1mA step), Default 350mA
- Dimming Control: 0-10V (Isolated) / Dimming Range: 1-100%
- UL Environmental Rating: Dry & Damp
