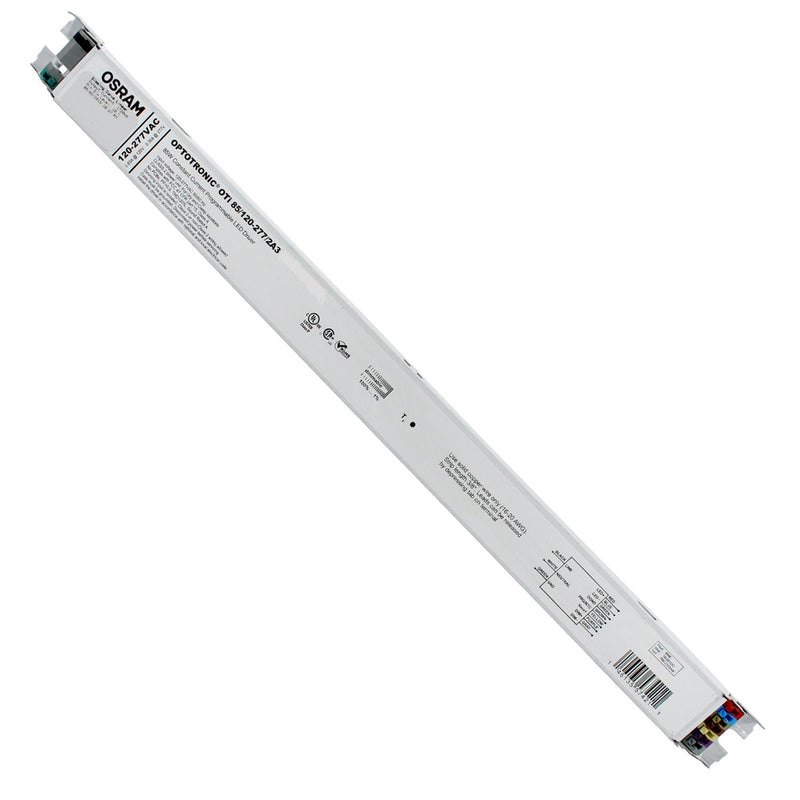

eldoLED OTi85/120-277/2A3 DIM L HB LED Driver with Surge Protection - 85W, 120/277V (57426)

eldoLED OTi85/120-277/2A3 DIM L HB dimmable 85W LED driver with surge protection.  The eldoLED 2743A1T constant current LED power supply has an input voltage of 120-277VAC, programmable output current of 700-2300mA (factory setting 1400mA) and an output voltage of 10-55VDC.  The non-aux dimmable LED driver is 0-10V dimming down to 10%. This product replaces most 85 watt LED drivers.  Great for High bays and factories.  Wire leads not included

This product is formerly known as OSRAM 57426



Brand:	eldoLED	Type:	Constant
Light:	LED	Lamp:	Modules
Driver:	0-10V Dim	Power:	Program
Wattage:	85W	Voltage:	120-277V
Current:	1400mA	Frequency:	50/60Hz
Certifications:	UL, RoHs	Length:	16.73"
Width:	1.16"	Height:	1.00"



eldoLED 2743A1T data sheet

Optotronics application guide





• Integrated LED Light Fixtures

• Lighting Repair

• Commercial Lighting
• Industrial Lighting
• Indoor/Outdoor
• Damp Rated



• Surge Protection

• Dimmable
• Input voltage: 120-277V
• UL Class 2 output
• Output current range: up to 2300mA
• Constant Lumen Output
• Over temperature protection
• End-of-life indication
• DALI compatible



• 30 day Seller Warranty
• 5 year Limited MFG Warranty
