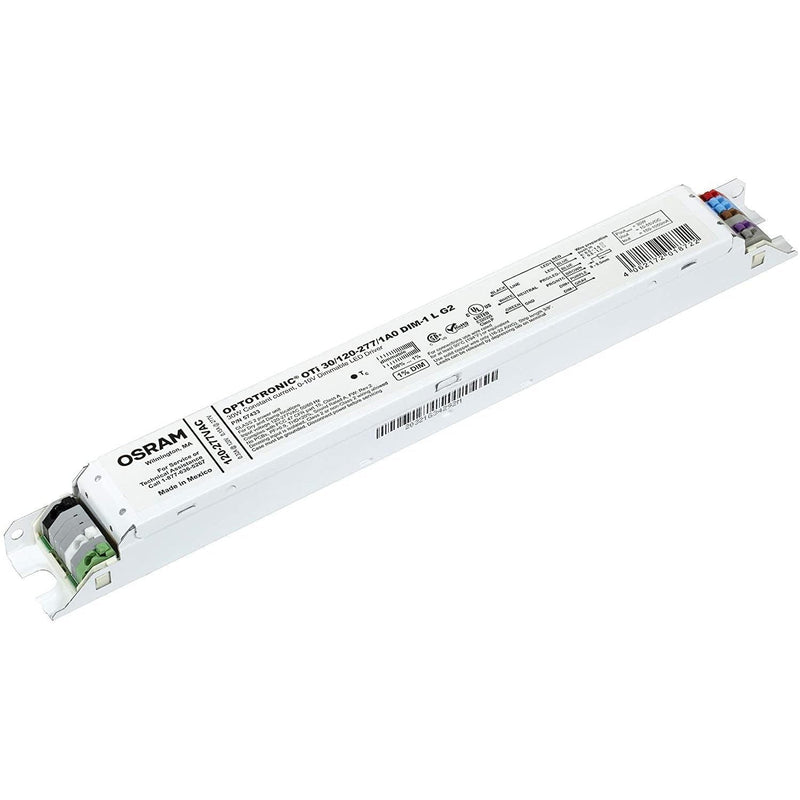

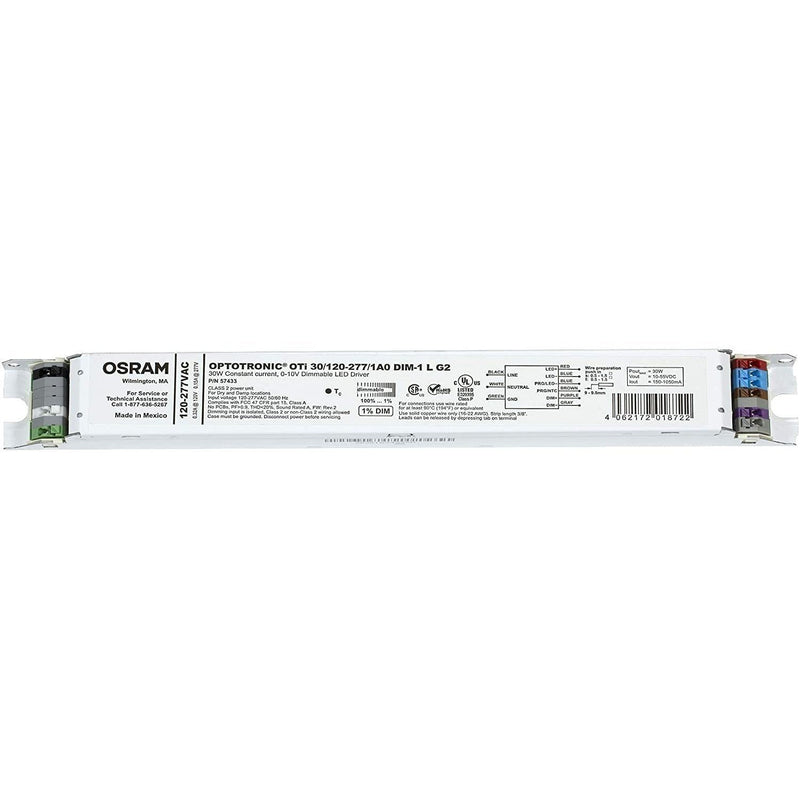

eldoLED OTi 30/120-277/1A0 DIM-1 L G2 Dimmable 30W LED Driver - 2743WG, 57433

by eldoLED
SKU 2743WG
Availability:
49 in stock, ready to be shipped
Original price $28.41 - Original price $28.41
Original price
$28.41
$28.41 - $28.41
Current price $28.41

 eldoLED 2743WG dimmable 30W LED driver.  The OTi 30/120-277/1A0 DIM-1 L G2 constant current LED power supply has an input voltage of 120-277VAC, programmable output current of 150-1050mA (factory setting 700mA) and an output voltage of 10-55VDC.  The dimmable LED power supply is 0-10V dimming down to 1%. The Optotronic LED driver is rated for damp and dry locations.  Wire leads not included.

This is the latest version of OSRAM 57433



Brand:  OSRAM Type:  Constant
Light:  LED Lamp:  Modules
Driver:  0-10V Dim Power:  Program
Wattage:  30W Voltage:  120-277V
Current:  700mA Frequency:  50/60Hz
Certifications:  UL, RoHs Length:  11.00"
Width:    1.10" Height:    1.00"



eldoLED 2743WG data sheet

Optotronics application guide





  • Integrated LED Light Fixtures
  • Lighting Repair
  • Commercial Lighting
  • Industrial Lighting
  • Indoor/Outdoor
  • Damp Rated



  • Programmable
  • Dimmable
  • Input voltage: 120-277V
  • UL Class 2 output
  • Output current range: up to 1050mA
  • Constant Lumen Output
  • Over temperature protection
  • End-of-life indication
  • DALI compatible



    • 30 day Seller Warranty
    • 5 year Limited MFG Warranty
