eldoLED OTi50/120-277/1A4 DIM-1L AUXG2 50W LED Driver with Aux - 0-10V, 120-277V

 eldoLED 2743X7 dimmable 50W LED driver with auxiliary output.  The OTi50/120-277/1A4 DIM-1L AUXG2 constant current LED driver has an input voltage of 120-277VAC, programmable output current of 400-1400mA (factory setting 1050mA) and an output voltage of 10-55VDC.  The dimmable LED power supply is 0-10V dimming down to 1%. The OPTOTRONIC LED driver is rated for damp and dry locations.  Wire leads not included.

This product is the latest version of  OSRAM 57456.



Brand:	OSRAM	Type:	Constant
Light:	LED	Lamp:	Modules
Driver:	0-10V Dim	Power:	Program
Wattage:	50W	Voltage:	120-277V
Current:	1050mA	Frequency:	50/60Hz

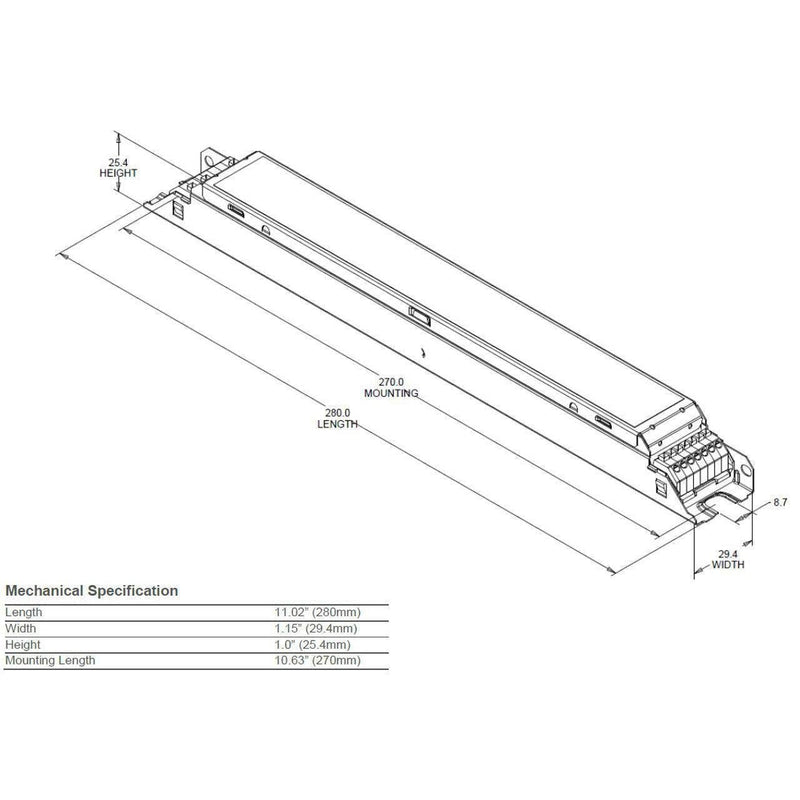

Certifications:	UL, RoHs	Length:	11.02"
Width:	1.15"	Height:	1.00"



OSRAM 57456 data sheet

Optotronics application guide





• Integrated LED Light Fixtures

• Lighting Repair

• Commercial Lighting
• Industrial Lighting
• Indoor/Outdoor
• Damp Rated



• Auxiliary Output

• Dimmable
• Input voltage: 120-277V
• UL Class 2 output
• Output current range: up to 1400mA
• Constant Lumen Output
• Over temperature protection
• End-of-life indication
• DALI compatible



• 30 day Seller Warranty
• 5 year Limited MFG Warranty



 eldoLED 2743X7 dimmable 50W LED driver with auxiliary output.  The OTi50/120-277/1A4 DIM-1L AUXG2 constant current LED driver has an input voltage of 120-277VAC, programmable output current of 400-1400mA (factory setting 1050mA) and an output voltage of 10-55VDC.  The dimmable LED power supply is 0-10V dimming down to 1%. The OPTOTRONIC LED driver is rated for damp and dry locations.  Wire leads not included.

This product is the latest version of  OSRAM 57456.
