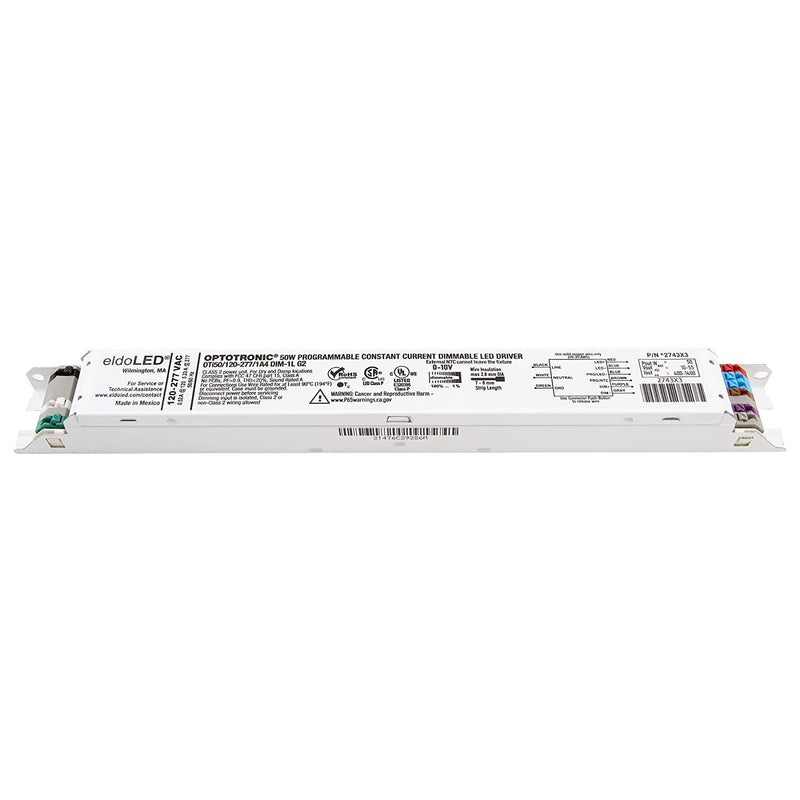

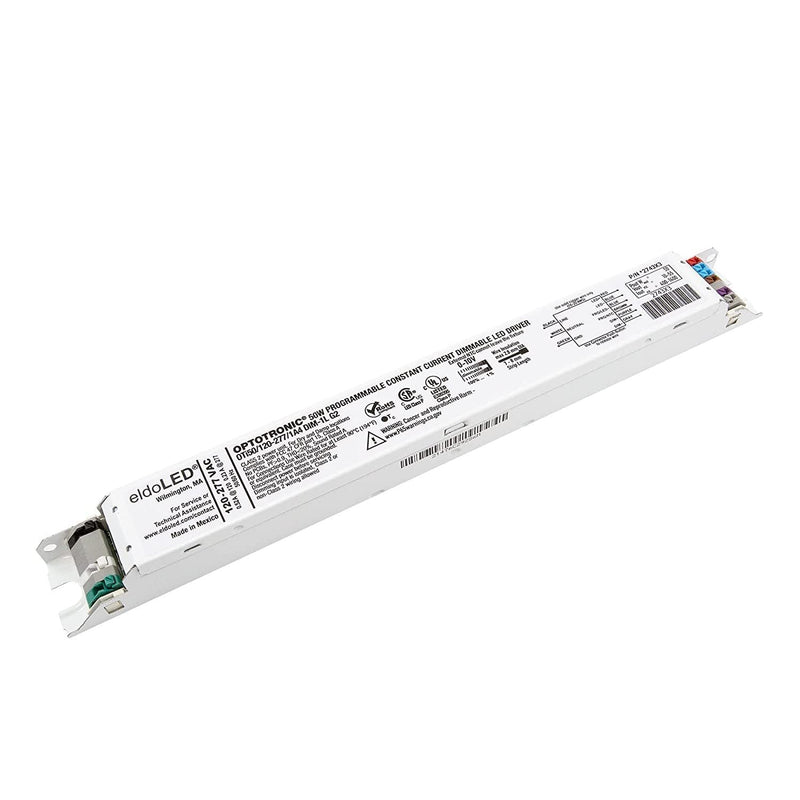

eldoLED *2743X3 OPTOTRONIC Programmable Linear 50 Watts Constant Current LED Driver, 0-10V Dimmable OTi50/120-277/1A4 DIM-1 L G2 120/277Vac (Osram 57452), White

by eldoLED
SKU 2743X3
Sold out
Original price $24.00 - Original price $24.00
Original price
$24.00 - $24.00
Current price $24.00
Out of stock

Estimated Shipping Widget will be displayed here! (with custom color)

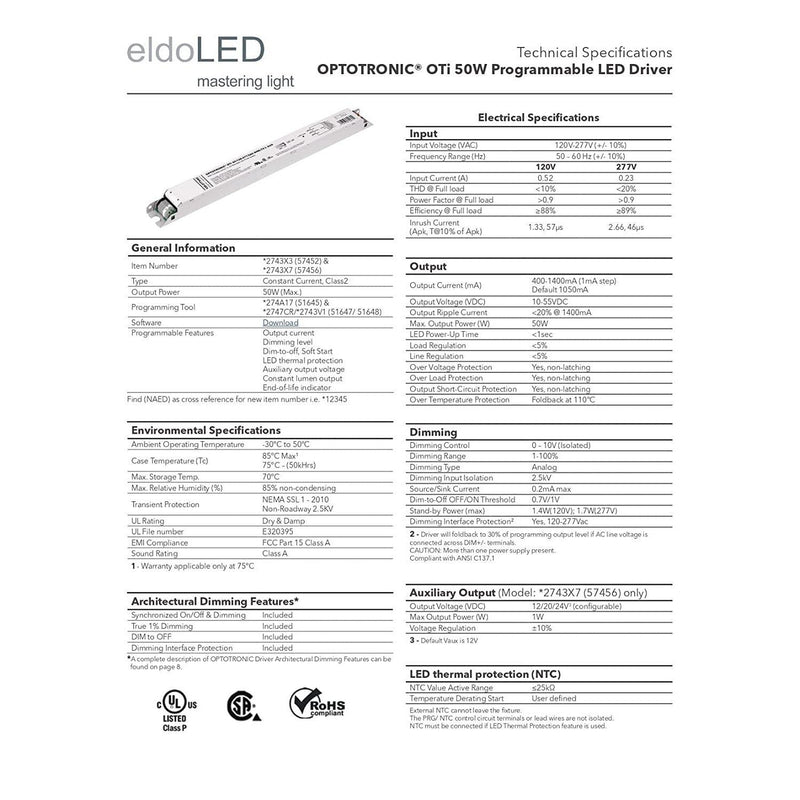

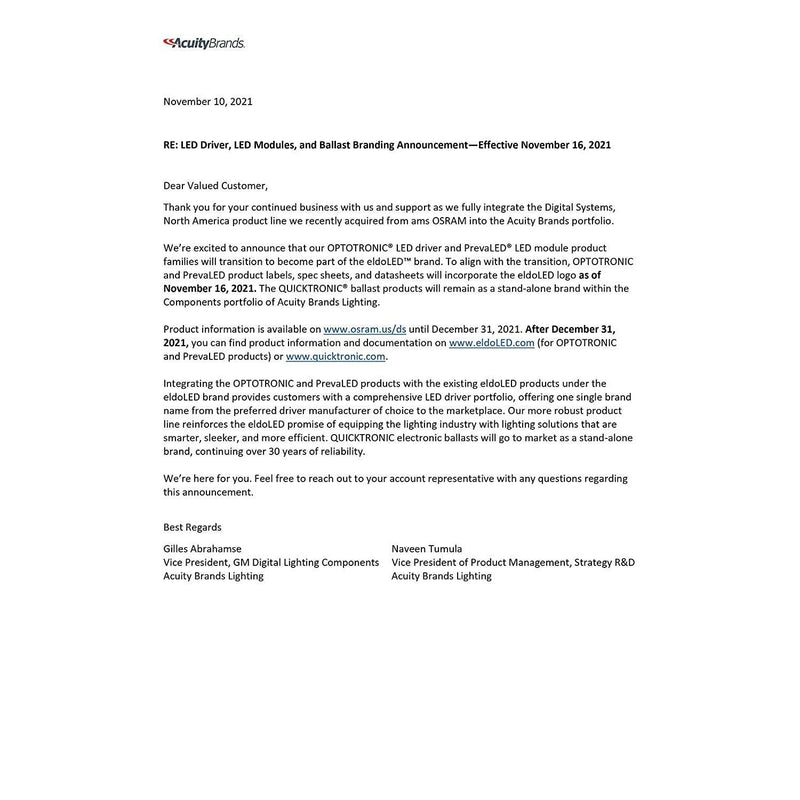

IMPORTANT MESSAGE:  Acuity Brands announced that the OPTOTRONIC LED driver product families were becoming part of the eldoLED brand. To align with the transition, OPTOTRONIC product labels, specification sheets, and datasheets incorporated the eldoLED logo as of November 16, 2021. OPTOTRONIC Programmable Linear Constant Current Dimmable LED DriverseldoLED *2743X3 OPTOTRONIC 50W Constant Current LED Driver, 0-10V Dimmable OTi50/120-277/1A4 DIM-1L G2 50W (Osram 57452)The OPTOTRONIC programmable dimmable family consists of highly efficient, linear, constant current LED drivers. One-click programming through the OPTOTRONIC programmer allows OEMs to configure the output current with 1mA resolution.Product FeaturesType:  Constant Current, Class 2Output Power:  50W (Max.)Programming Tool:  *274A17 (51645) & *2747CR/*2743V1 (51647/ 51648)Programmable Features:  Output currentDimming levelDim-to-off, Soft StartLED thermal protectionAuxiliary output voltageConstant lumen outputEnd-of-life indicatorInput Voltage (VAC):  120-277V (+/- 10%)Frequency Range (Hz):  50-60 Hz (+/- 10%)Output Current:  400-1400mA (1mA Step), 1050mA defaultOutput Voltage (VDC):  10-55VDCDimming Control:  0-10V (Isolated)Dimming Range:  1-100%Dimming Type:  AnalogUL Environmental Rating: Dry and DampUL File Number:  E320395Product Dimensions (L x W x H):  11.00" x 1.20" x 1.00""Product Weight:  8.7oz  Areas of ApplicationIndirect/directLinearRecessed troffe
  • OPTOTRONIC Programmable Linear LED Driver
  • Constant Current, 0-10V Dimmable LED Driver
  • Input Voltage: 120-277VAC 50/60 Hz
  • Pout: 50W, Vout: 10-55VDC, Iout: 400-1400mA
  • UL Class 2 output for safe operation, Class P
