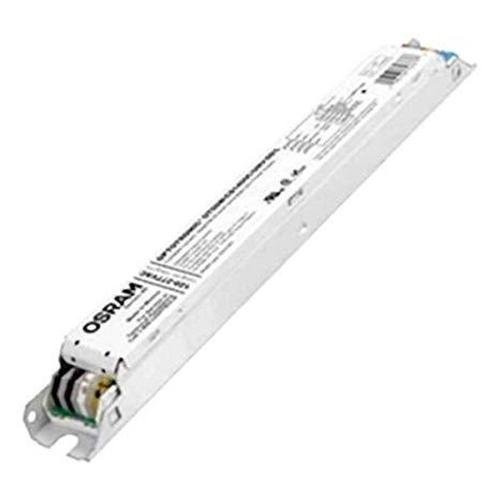

eldoLED OTi20/120-277/700 DIM-1L G2 Dimmable 20W LED Driver - 0-10V, 120-277V

by eldoLED
SKU 2743WE
Availability:
15 in stock, ready to be shipped
Original price $28.57 - Original price $28.57
Original price
$28.57
$28.57 - $28.57
Current price $28.57

Fast & Free Delivery, 30-Day Easy Returns. Read full refund policy

Estimated Shipping Widget will be displayed here! (with custom color)

eldoLED 2743WE dimmable 20W LED driver.  The OTi20/120-277/700 DIM-1L G2 constant current LED power supply has an input voltage of 120-277VAC, programmable output current of 150-700mA (factory setting 350mA) and an output voltage of 10-55VDC.  The dimmable LED power supply is 0-10V dimming down to 1%. The Optotronic LED driver is rated for damp and dry locations.  Wire leads not included.

This product is the latest version of OSRAM 57431



Brand:  eldoLED Type:  Constant
Light:  LED Lamp:  Modules
Driver:  0-10V Dim Power:  Program
Wattage:  85W Voltage:  120-277V
Current:  350mA Frequency:  50/60Hz

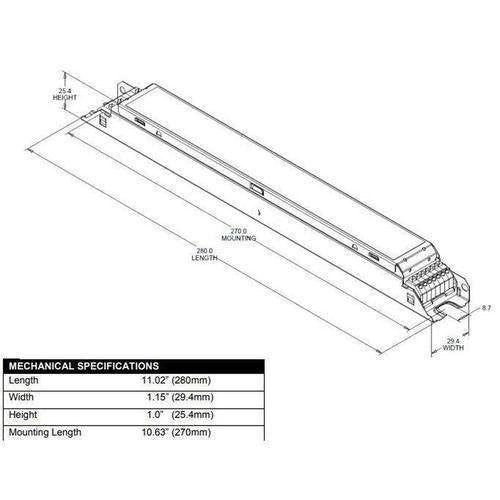

Certifications:  UL, RoHs Length:  11.02"
Width:    1.15" Height:    1.00"



eldoLED data sheet

Optotronics application guide





  • Integrated LED Light Fixtures
  • Lighting Repair
  • Commercial Lighting
  • Industrial Lighting
  • Indoor/Outdoor
  • Damp Rated



  • Programmable
  • Dimmable
  • Input voltage: 120-277V
  • UL Class 2 output
  • Output current range: up to 700mA
  • Constant Lumen Output
  • Over temperature protection
  • End-of-life indication
  • DALI compatible



    • 30 day Seller Warranty
    • 5 year Limited MFG Warranty
