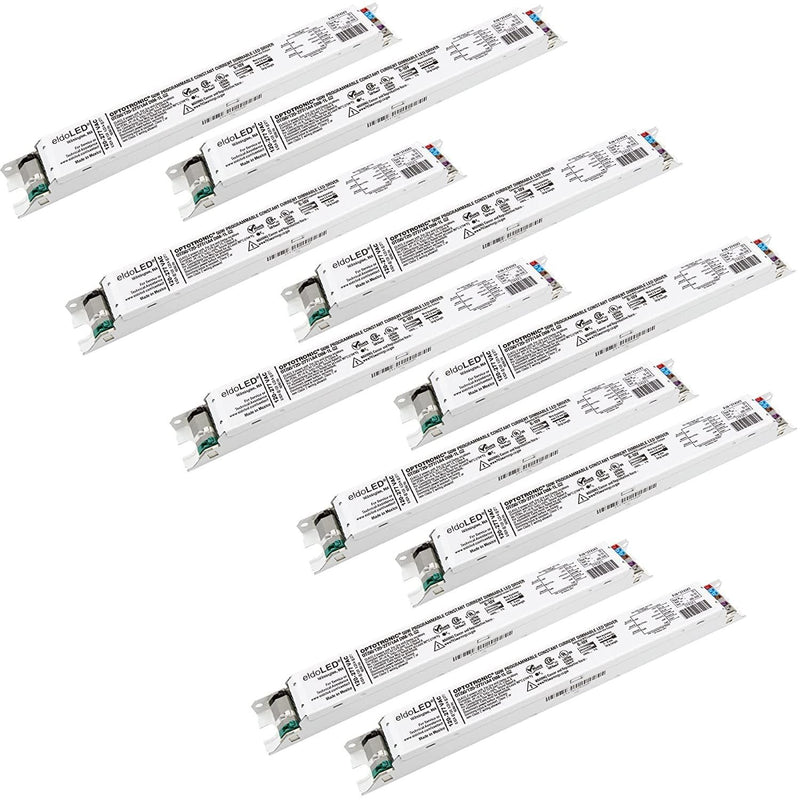

10 Pack - eldoLED 2743X3 OPTOTRONIC Programmable Linear 50 Watts Constant Current LED Driver, 0-10V White

by eldoLED
SKU 2743X3-10
Sold out
Original price $248.23 - Original price $248.23
Original price
$248.23
$248.23 - $248.23
Current price $248.23
Availability:
Out of stock

Estimated Shipping Widget will be displayed here! (with custom color)

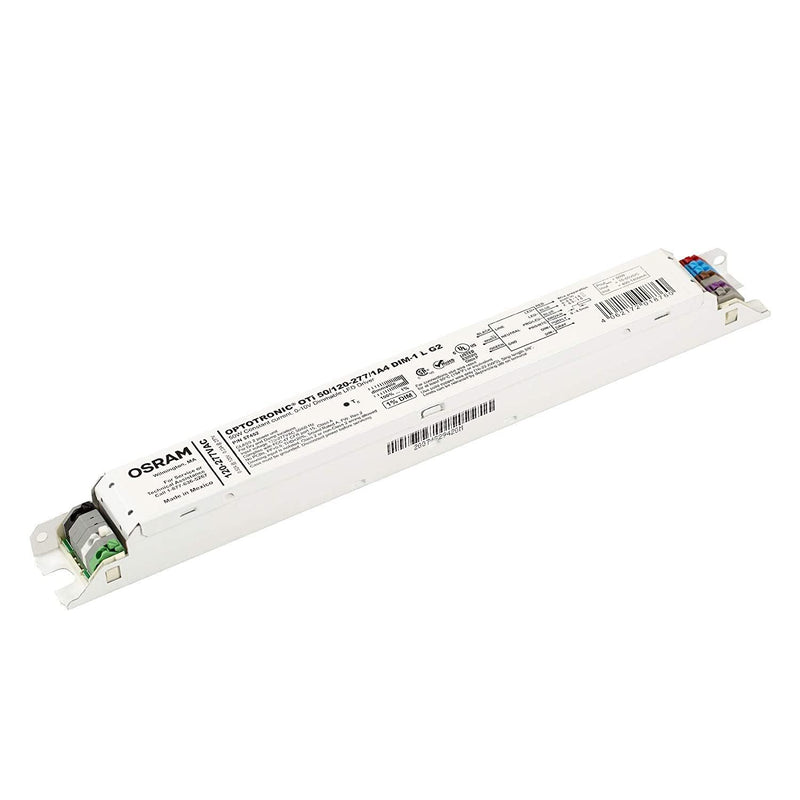

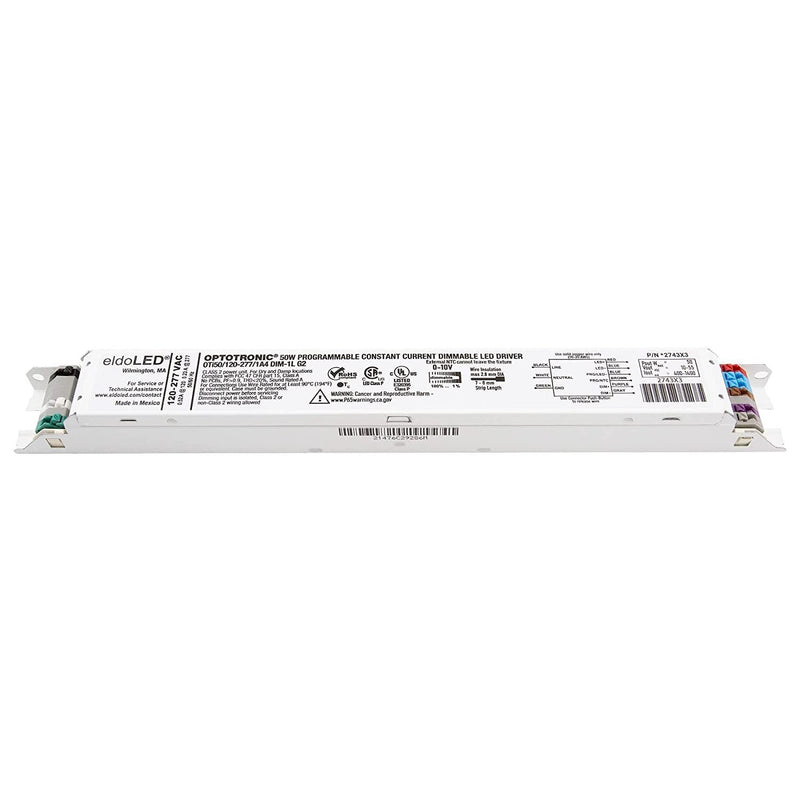

IMPORTANT MESSAGE:  Acuity Brands announced that the OPTOTRONIC LED driver product families were becoming part of the eldoLED brand. To align with the transition, OPTOTRONIC product labels, specification sheets, and datasheets incorporated the eldoLED logo as of November 16, 2021.  OPTOTRONIC Programmable Linear  Constant Current Dimmable  LED Drivers 10 Pack - eldoLED *2743X3 OPTOTRONIC 50W Constant Current LED Driver, 0-10V Dimmable OTi50/120-277/1A4 DIM-1L G2 50W (Osram 57452) The OPTOTRONIC programmable dimmable family consists of highly efficient, linear, constant current LED drivers. One-click programming through the OPTOTRONIC programmer allows OEMs to configure the output current with 1mA resolution. Product Features Type:  Constant Current, Class 2 Output Power:  50W (Max.) Programming Tool:  *274A17 (51645) & *2747CR/*2743V1 (51647/ 51648) Programmable Features:   Output current Dimming level Dim-to-off, Soft Start LED thermal protection Auxiliary output voltage Constant lumen output End-of-life indicator Input Voltage (VAC):  120-277V (+/- 10%) Frequency Range (Hz):  50-60 Hz (+/- 10%) Output Current:  400-1400mA (1mA Step), 1050mA default Output Voltage (VDC):  10-55VDC Dimming Control:  0-10V (Isolated) Dimming Range:  1-100% Dimming Type:  Analog UL Environmental Rating: Dry and Damp UL File Number:  E320395 Product Dimensions (L x W x H):  11.00" x 1.20" x 1.00"" Product Weight:  8.7oz    Areas of Application Indirect/direct Linear Recessed troffer

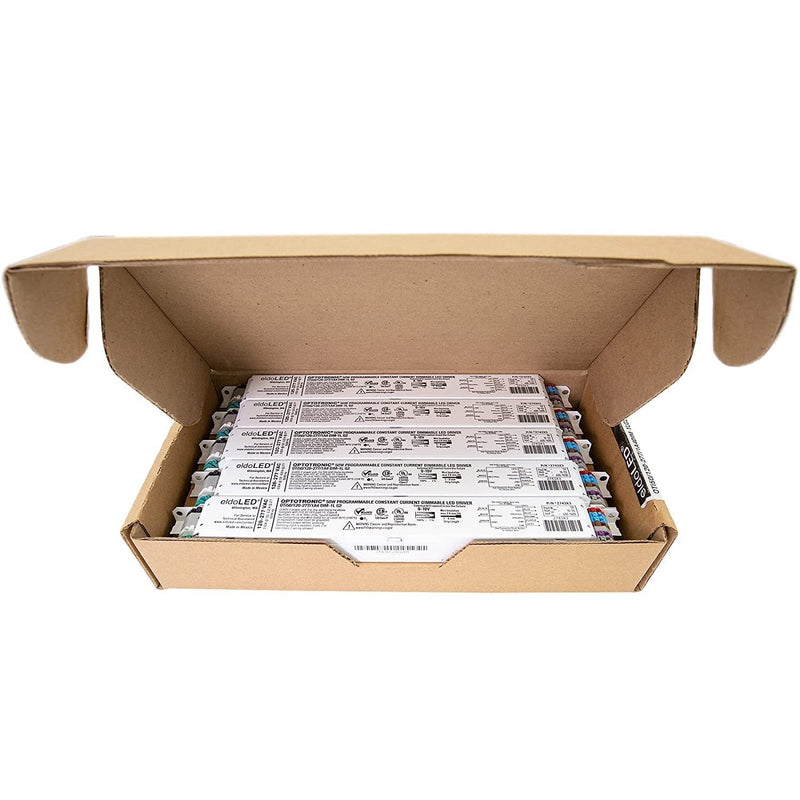

  • OPTOTRONIC Programmable Linear LED Driver (Pack of 10)
  • Constant Current, 0-10V Dimmable LED Driver
  • Input Voltage: 120-277VAC 50/60 Hz
  • Pout: 50W, Vout: 10-55VDC, Iout: 400-1400mA
  • UL Class 2 output for safe operation, Class P
