Leviton 23661-SWP Medium Snap-in Shunted T8 Fluorescent Lamp Holder - LeanLight
Leviton 23661-SWP Medium Snap-in Shunted T8 Fluorescent Lamp Holder - LeanLight
Leviton 23661-SWP Medium Snap-in Shunted T8 Fluorescent Lamp Holder - LeanLight
Leviton 23661-SWP Medium Snap-in Shunted T8 Fluorescent Lamp Holder - LeanLight
LeanLight
LeanLight
LeanLight
LeanLight

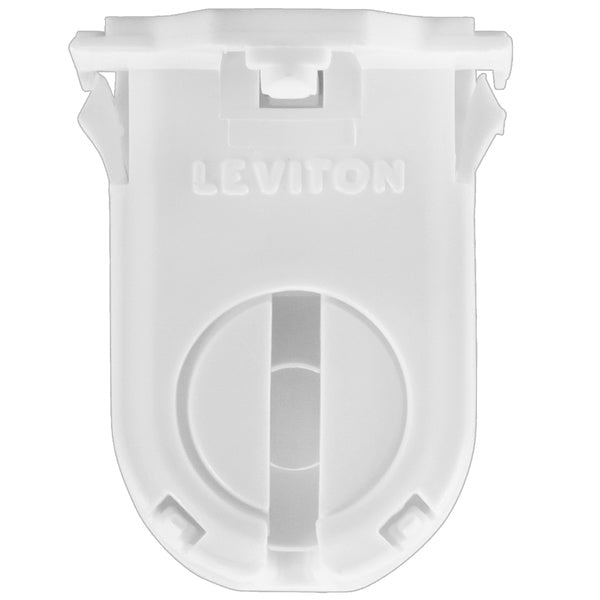

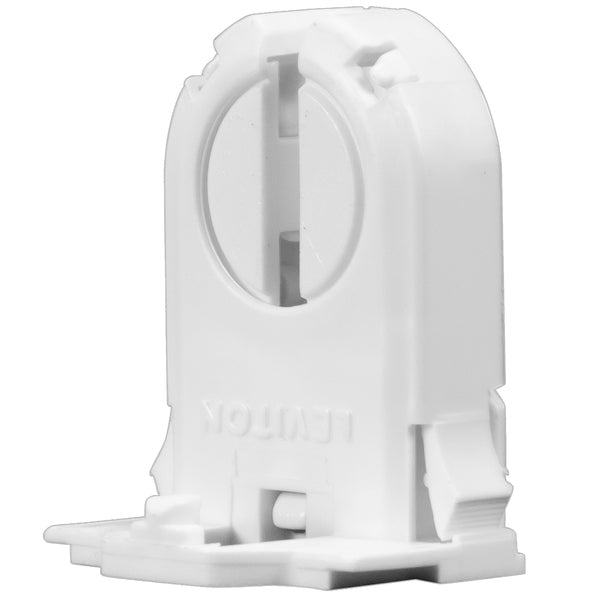

Leviton 23661-SWP Medium Snap-in Shunted T8 Fluorescent Lamp Holder

by Leviton
SKU 23661-SWP-8
Availability:
196 in stock, ready to be shipped
Availability:
24 in stock, ready to be shipped
Availability:
Only 4 left!
$11.99 - $450.00
$11.99
$11.99 - $450.00
$11.99
Package: Pack of 8

Product Details

Leviton 23661-SWP medium-based, snap-in or slide-on, shunted, T8 fluorescent lamp holder.  T8/T12 (G13 base) shunted, medium bi-pin, turn type with lamp lock socket, medium height, (23MM) lamp center. 660W-600V. UL certified, snap-in with post mounted, bottom load. COF white.  This product is the most common T8 fluorescent lamp holder in the United States



Brand:  Leviton Contact:  Shunted
Style:  Tombstone Base:  G13
Lamp:  T8 Mounting:  Slide-on
Connection:  Bi-pin Type:  Snap-in
Wattage:  660W max Voltage:  600V max

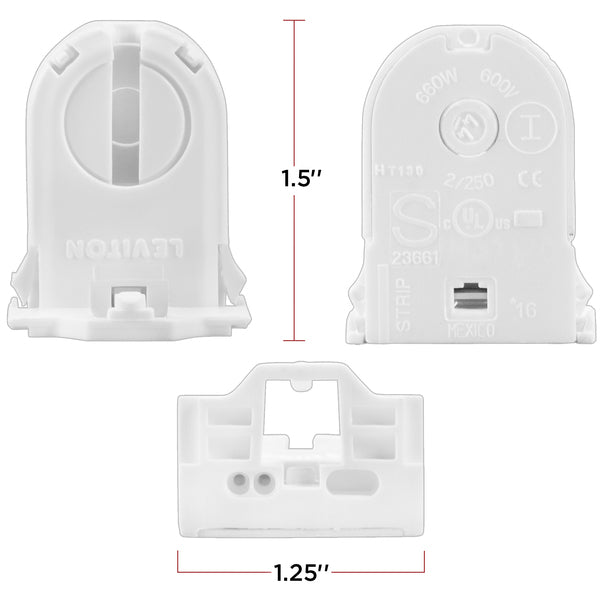

Certifications:  cULus Height:  1.59"
Width:  1.00" Depth:  0.72"



  • T8 or T12 Fluorescent Light Fixtures
  • LED Tube Light Fixtures
  • Commercial Lighting
  • Indoor/Outdoor Lighting



  • PBT material
  • Copper connectors
  • Lamp Contacts: Bi-Pin
  • Style Name: Straight Lamp or U-lamp
  • Self- Aligning
  • Bottom Load Wire
  • 18AWG Solid or Stranded Wire
  • Suitable for Damp Locations



    • 30 day Seller Warranty
    • 3 year Limited MFG Warranty



    Leviton 23661-SWP medium-based, snap-in or slide-on, shunted, T8 fluorescent lamp holder.  T8/T12 (G13 base) shunted, medium bi-pin, turn type with lamp lock socket, medium height, (23MM) lamp center. 660W-600V. UL certified, snap-in with post mounted, bottom load. COF white.  This product is the most common T8 fluorescent lamp holder in the United States
