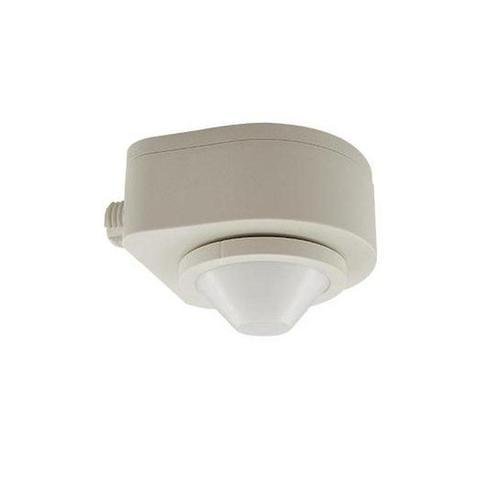

IR-TEC LOS-502SEC High Bay Occupancy Sensor with Adjustable Timer - PIR, 8-30', 120-277V

IR-TEC LOS-502SEC is a line voltage switching high bay occupancy sensor for 8-30 FT mounts in 120-277 volt applications. The LOS-500 series is designed for all-purpose energy efficient lighting control. This motion sensor fits directly into the 1/2 inch knockout located on most commercial and industrial light fixtures.  The LOS-502SEC also fits perfectly into a junction box for pole mounting.  IR-TEC occupancy sensors employ a cutting edge quad element pyroelectric "passive" infrared (PIR) sensor to provide omni-directional sensing capability of occupant’s presence and movements. Rotary DIP switches make the sensor setting easier, faster and more accurate than the conventional analog potentiometer. The IR-TEC high bay sensor is designed to operate in the coldest of environments, down to -40°F/°C. The LOS-500 series comes with optional ambient light sensor (ALS) to inhibit the lighting if ambient light levels are higher than required. The LOS-500 is designed to provide complete occupancy sensing for automatic lighting control, ease of use, and the simplest installation possible.



Brand:	IR-TEC	Type:	Occupancy
Technology:	PIR	Lens:	360°
Mount:	Fixture	Color:	Off White
Coverage:	30'	Range:	3 x Height
Wattage:	800W max	Voltage:	120-277 VAC
Hertz:	50/60Hz	Control:	Dip Switch
Certifications:	UL	Length:	4.37"
Width:	3.54"	Height:	1.80"

LOS-500 data sheet

LOS-500 installation sheet

LOS-500 mounting instructions



• High Bay Fixtures
• Low Bay Fixtures
• Pole Mounting
• 8-30' Mounting
• Warehouses
• Commercial/Industrial
• Indoor/Outdoor
• Damp Rated



• Occupancy-Vacancy sensor

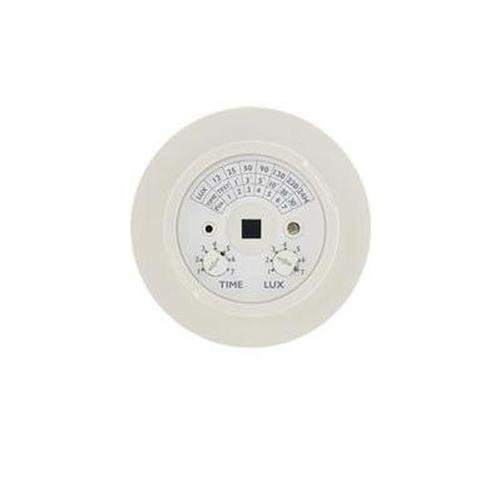

• Rotary DIP settings switch
• Operation LED indicator
• Wire Leads included
• 360° Lens
• 3 x mounting height
• Manual Control
• 120-277VAC multi-volt



• 30 day Seller Warranty
• 3 year Limited MFG Warranty



IR-TEC LOS-502SEC is a line voltage switching high bay occupancy sensor for 8-30 FT mounts in 120-277 volt applications. The LOS-500 series is designed for all-purpose energy efficient lighting control. This motion sensor fits directly into the 1/2 inch knockout located on most commercial and industrial light fixtures.  The LOS-502SEC also fits perfectly into a junction box for pole mounting.  IR-TEC occupancy sensors employ a cutting edge quad element pyroelectric "passive" infrared (PIR) sensor to provide omni-directional sensing capability of occupant’s presence and movement
