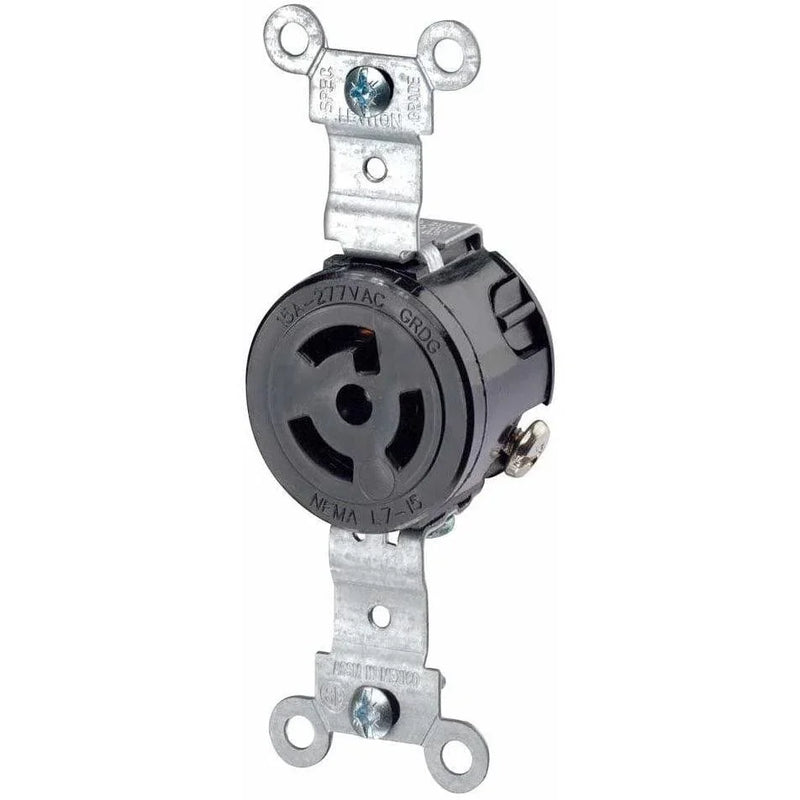

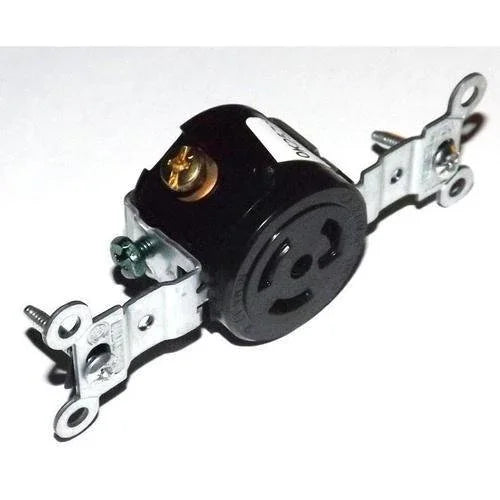

Leviton 4760 15 Amp 277 Volt Locking Receptacle - 2 Pole, 3 Wire, L7-15R

Leviton 4760 is a NEMA L7-15R industrial-grade single 277V locking receptacle.  Built to provide unparalleled quality and superior performance in the most severe industrial settings, the female style industrial outlet is 15 Amp, 277 Volt, 2 Pole and 3 Wire. Leviton offers a lifetime warranty on all twist lock receptacles.

Equivalent to Pass & Seymour 4760, Legrand 4760, Hubbell 4760.



Brand:	Leviton	NEMA:	L7-15R
Type:	Female	Connection:	Locking
Color:	Black	Blades:	Brass
Amperage:	15A	Voltage:	277 VAC
Pole:	2	Wire:	3

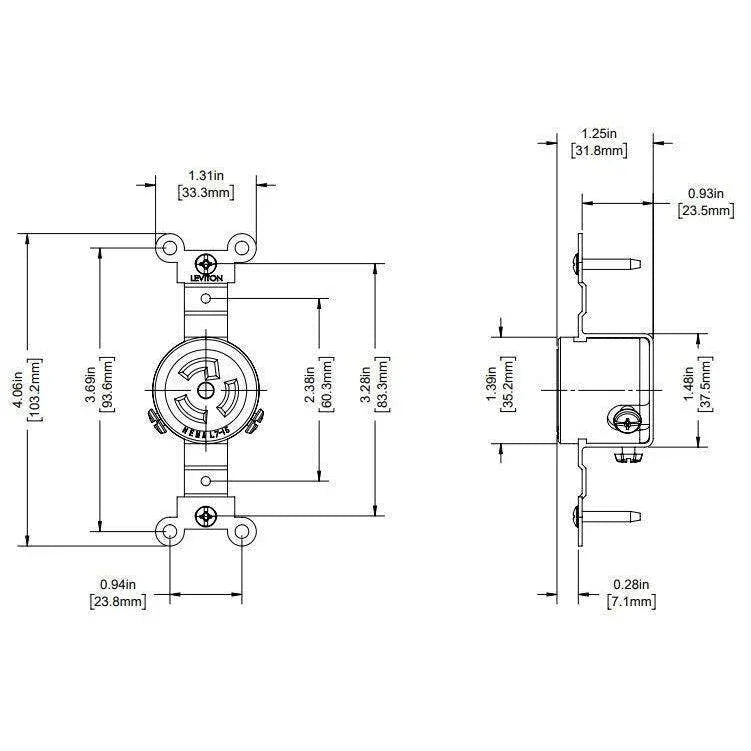

Certifications:	UL, ANSI	Height:	4.08"
Width:	1.38"	Depth:	1.20"



L7-15R installation instructions



• Warehouses
• Lighting
• Industrial Machinery

• Commercial/Industrial
• Indoor Applications
• Dry Rated



• Brass Connectors

• Nylon Face
• Flush Mount
• Operating Temperature 40C to 60C
• 14-8 AWG Solid or Stranded Wire



• 30 day Seller Warranty
• Lifetime MFG Warranty





Leviton 4760 is a NEMA L7-15R industrial-grade single 277V locking receptacle.  Built to provide unparalleled quality and superior performance in the most severe industrial settings, the female style industrial outlet is 15 Amp, 277 Volt, 2 Pole and 3 Wire. Leviton offers a lifetime warranty on all twist lock receptacles.

Equivalent to Pass & Seymour 4760, Legrand 4760, Hubbell 4760.
