57422 | OTi 85/120-277/2A3 DIM L Dimmable 85W LED Power Supply - 0-10V, 120-277V-LeanLight

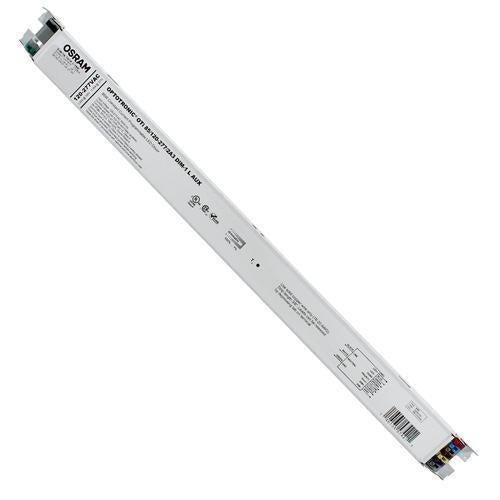

eldoLED 2743W6 OTi85/120-277/2A3 DIM-1 L AUX 85 Watt LED Driver - 0-10V, 120-277V (57421)

by eldoLED
SKU 2743W6
Availability:
72 in stock, ready to be shipped
$42.00 - $42.00
$42.00
$42.00 - $42.00
$42.00

Estimated Shipping Widget will be displayed here! (with custom color)

eldoLED 2743W6 OTi 85/120-277/2A3 DIM-1 L AUX OPTOTRONIC dimmable 85 watt LED driver is a constant current LED power supply with an input voltage of 120-277VAC, programmable output current of 700-2300mA (factory setting 1400mA), an output voltage of 10-55VDC and a 12V auxiliary port. The dimmable LED driver is 0-10V dimming down to 1%. This product is formerly known as OSRAM 57421 OTi 85/120-277/2A3 DIM-1 L AUX and Sylvania 57421 OTi 85/120-277/2A3 DIM-1 L AUX.



Brand:  OSRAM Type:  Constant
Light:  LED Lamp:  Modules
Driver:  0-10V Dim Power:  Program
Wattage:  85W Voltage:  120-277V
Current:  1400mA Frequency:  50/60Hz
Certifications:  UL, RoHs Length:  16.73"
Width:    1.16" Height:    1.00"



Optotronics application guide





  • Integrated LED Light Fixtures
  • Lighting Repair
  • Commercial Lighting
  • Industrial Lighting
  • Indoor/Outdoor
  • Damp Rated



  • Programmable
  • Dimmable down to 1%
  • Input voltage: 120-277V
  • UL Class 2 output
  • Output current range: up to 2300mA
  • Constant Lumen Output
  • Over temperature protection
  • End-of-life indication
  • DALI compatible



    • 30 day Seller Warranty
    • 5 year Limited MFG Warranty
