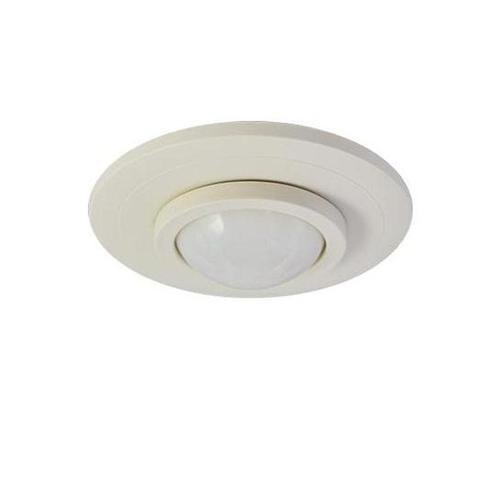

LOS-502SCF | Recessed Ceiling Mount Occupancy Sensor - PIR, 800W, 120/277V, 50/60Hz

IR-TEC LOS-502SCF is a line voltage switching recessed ceiling PIR occupancy sensor for 8-20' mounts. The LOS-500 series is a member of the TRANS family is a line voltage switching occupancy sensor designed for all-purpose energy efficient lighting control. This occupancy sensor employs a cutting edge quad element pyroelectric (passive) infrared sensor to provide omni-directional sensing capability of occupant’s presence and movements. Rotary DIP switches make the sensor setting easier, faster and more accurate than the conventional analog potentiometer. The sensor is designed to operate in the coldest of environments, down to -40°F/°C. The LOS-500 series comes with optional ambient light sensor (ALS) to inhibit the lighting if ambient light levels are higher than required. The LOS-500 is designed to provide complete occupancy sensing for automatic lighting control, ease of use, and the simplest installation possible.



Brand:	IR-TEC	Type:	Occupancy
Technology:	PIR	Lens:	360°
Mount:	Recessed	Color:	Off White
Coverage:	20'	Range:	3 x Height
Wattage:	800W max	Voltage:	120-277 VAC
Hertz:	50/60Hz	Control:	Dip Switch
Certifications:	UL	Length:	3.54"
Width:	3.54"	Height:	1.65"

LOS-500 data sheet

LOS-500 installation sheet

LOS-500 mounting instructions



• General Lighting
• Classrooms
• Offices
• Bathrooms
• 8-20' Mounting
• Residential/Commercial
• Indoor/Outdoor
• Damp Rated



• Occupancy-Vacancy sensor

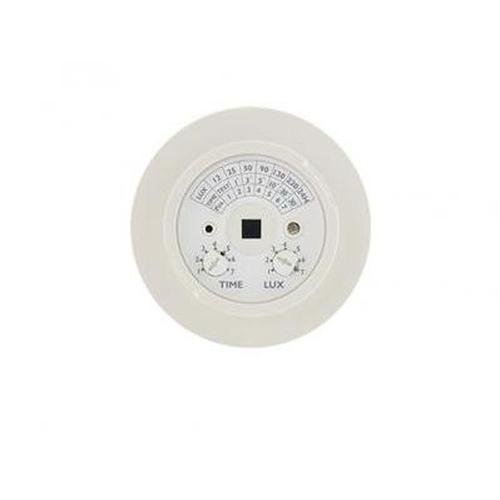

• Rotary DIP settings switch
• Operation LED indicator
• Wire Leads included
• 360° Lens
• 3 x mounting height
• Manual Control
• 120-277VAC multi-volt



• 30 day Seller Warranty
• 3 year Limited MFG Warranty
