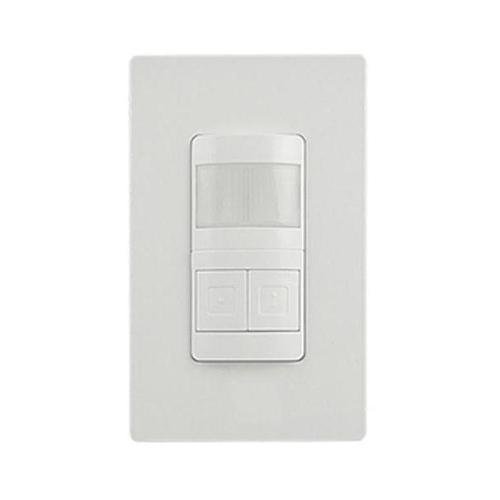

LBT-700SW | White Sensor Light Switch with Screwless Wall Plate - PIR, 2 Pole, 120-277VAC

IR-Tec LBT-700SW (white) 2-pole, 120/277VAC light switch with motion sensor and wall plate.  The line voltage wall switch sensor designed to fit in a standard NEMA wall box with no neutral connection required. The sensors combine state-of-the-art passive infrared sensing technology with decor aesthetics to provide optimal energy-saving for all applications. The sensor will turn ON the load automatically when it detects the presence of an occupant, and will turn OFF automatically if no motion is detected before the delay time elapses. To meet compliance of specific energy code, such as CA Title 24, the LBS-700 series can be easily programmed as a Vacancy sensor. In Vacancy mode the sensor will only turn ON the load by pressing the push-button manually and will turn OFF the load automatically per the sensor time delay. The LBS-700 series allows for the push-button operation to be programmed with different manual control options.



Brand:	IR-TEC	Type:	Occupancy
Technology:	PIR	Lens:	180°
Mount:	Flush	Color:	White
Coverage:	40'	Range:	1,200 sq ft
Current:	2A max	Voltage:	120-277 VAC
Pole:	2	Wire:	3

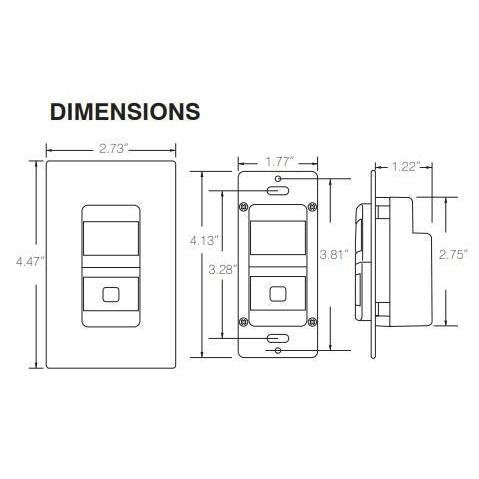

Certifications:	UL	Height:	4.13"
Width:	1.77"	Depth:	1.22"

LBT-700 data sheet

LBT-700 install sheet



• Laundry rooms
• Restrooms
• Self-storage
• Bathrooms
• Closets
• Entrances
• Garages
• Hallways
• Utility rooms
• Workshops
• Commercial/Residential
• Indoor Applications
• Dry Rated



• Occupancy-Vacancy sensor
• California Approved
• Low profile
• 180° Lens
• Coverage 1,200 sq. ft.
• Vandalism protection
• Hybrid-Switching
• Manual Control
• Screwless wall plate
• 120-277VAC



• 30 day Seller Warranty
• 3 year Limited MFG Warranty



IR-Tec LBT-700SW (white) 2-pole, 120/277VAC light switch with motion sensor and wall plate.  The line voltage wall switch sensor designed to fit in a standard NEMA wall box with no neutral connection required. The sensors combine state-of-the-art passive infrared sensing technology with decor aesthetics to provide optimal energy-saving for all applications. The sensor will turn ON the load automatically when it detects the presence of an occupant, and will turn OFF automatically if no motion is detected before the delay time elapses. To meet compliance of specific energy code,
