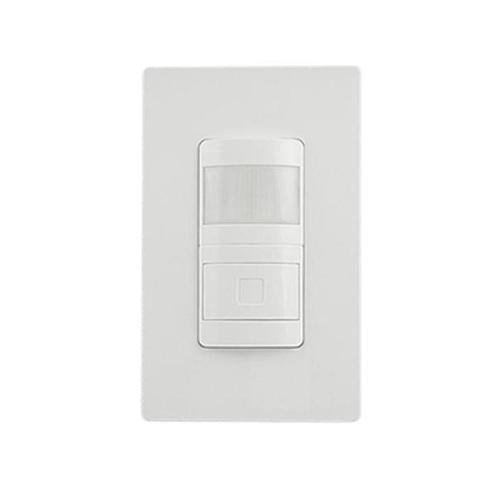

BBS-702SW | White Low Voltage Sensor Light Switch with Screwless Wall Plate - 1 Pole, 12-24VDC



Description

IR-Tec BBS-702SW is a 1-pole, 12-24VDC white low voltage light switch with sensor and wall plate.  Use this low voltage wall switch with manual on/off push button control or occupancy sensor.  Designed to fit in a standard NEMA 1 gang wall box and this sensor light switch can be used in existing low voltage applications or with IR-TEC power pack PPU-301. The sensor combines state-of-the-art passive infrared sensing technology with décor aesthetics to provide optimal energy-saving for the applications.

The BBS-702 sensor provides an isolated dry contact together with a unique momentary contact signal to control the load through the connected Power Pack or Building Management System (BMS) with Multi-way Manual Control (MMC). The MMC is ideal for large area applications where may require multiple wall switch sensors and wall/ceiling mount sensors to cover the whole area, but with manual on/off control available for specific purpose. To meet compliance of specific energy code, such as CA Title 24, the BBS-702 series can be used as vacancy sensor through specific wiring with PPU-301. Under the vacancy sensing control, the connected load will only be switched on by pressing the push-button manually, and switched OFF automatically when delay time of the last motion detected sensor elapses.

The model BBS-702S comes with an ambient light sensor (ALS) to inhibit its output if ambient light level is higher than required. The Accu-Set digital potentiometers make delay time (TIME) and ambient light level (LUX) settings fast, easy and accurate. Isolated dry contact output allows the BBS-702 series to control the load with IR-TEC Power Packs or integrate with BMS/BAS.



Brand:	IR-TEC	Type:	Occupancy
Technology:	PIR	Lens:	180°
Mount:	Flush	Color:	White
Coverage:	40'	Range:	1,200 sq ft
Current:	2A max	Voltage:	12-24 VDC
Pole:	2	Wire:	3

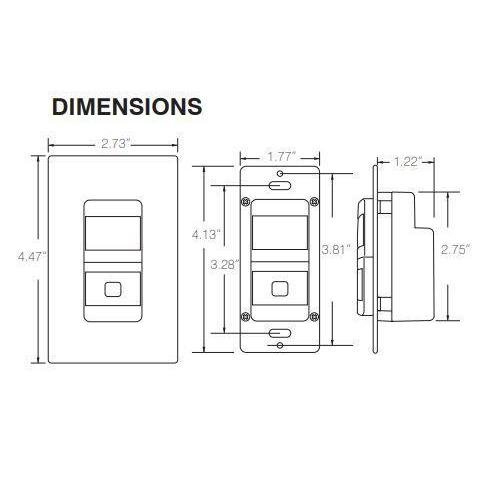

Certifications:	UL	Height:	4.13"
Width:	1.77"	Depth:	1.22"

BBS-702 data sheet

BBS-702 install sheet



• Classrooms
• Open Offices
• Lecture Hall
• Conference Rooms
• Open spaces
• Commercial/Residential
• Indoor Applications
• Dry Rated



• Occupancy-Vacancy sensor
• Low profile
• 180° Lens
• Coverage 1,200 sq. ft.
• Vandalism protection
• Manual Control
• Screwless wall plate
• 12-24VDC



• 30 day Seller Warranty
• 3 year Limited MFG Warranty
