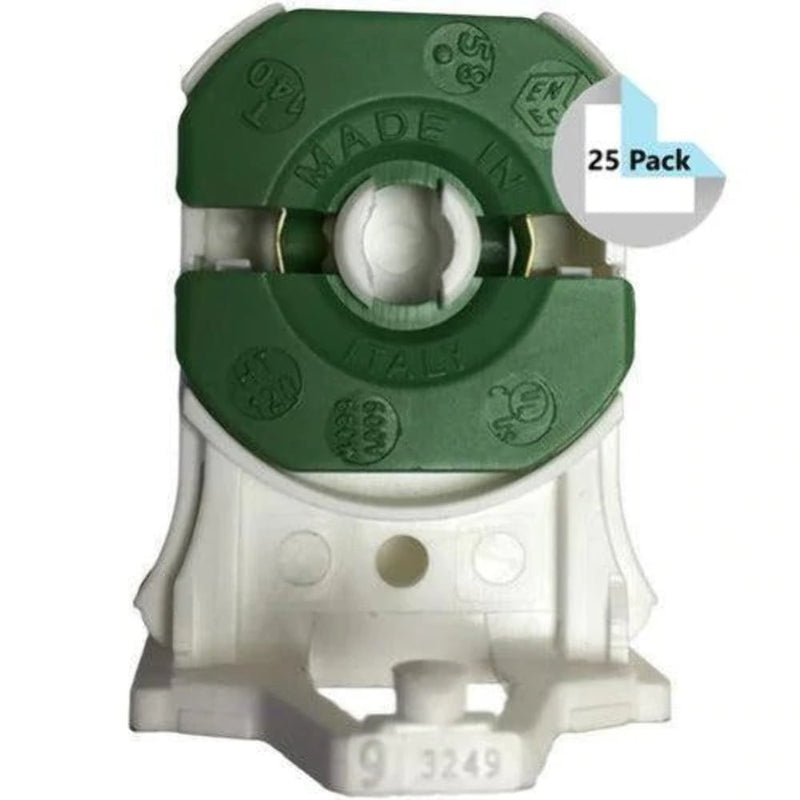

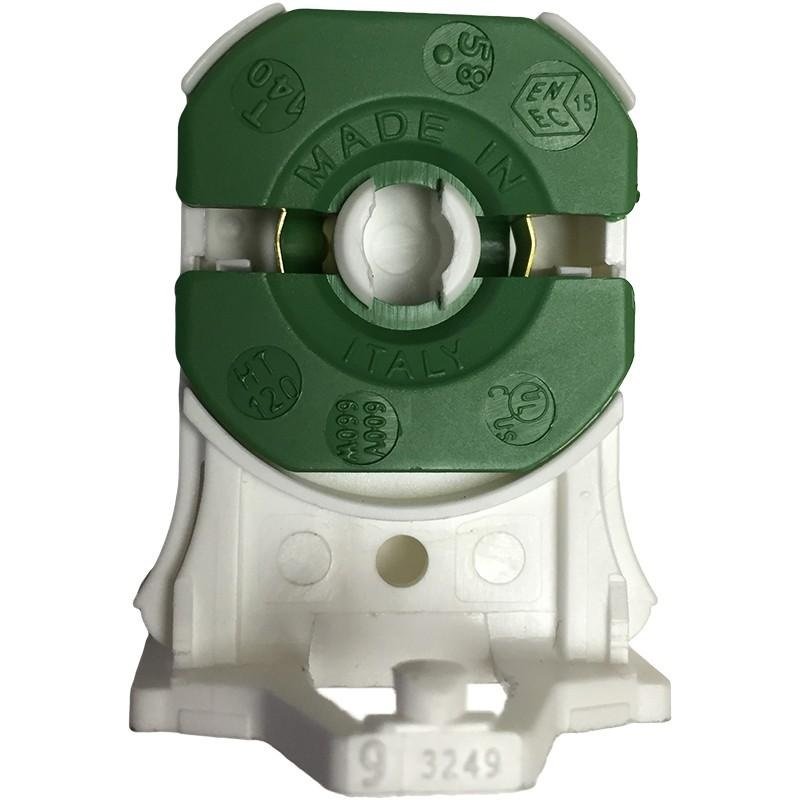

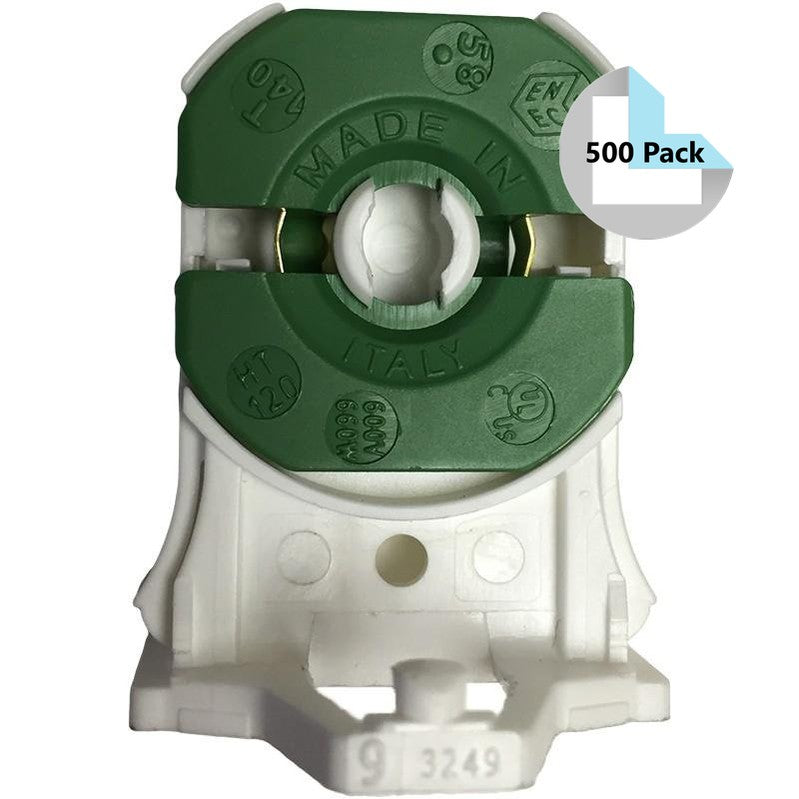

Stucchi Snap-in Shunted T8 or T12 Fluorescent Lamp Holder - 3249-9-H/S-U-PBT

por AAG Stucchi
SKU 3249-9-H/S-U-PBT
Disponibilidad:
419 en stock, listo para ser enviado
Disponibilidad:
41 en stock, listo para ser enviado
Disponibilidad:
16 en stock, listo para ser enviado
Disponibilidad:
Agotado

Fast & Free shipping - 30 day Easy returns

$6.78 - $265.99
$6.78
$6.78 - $265.99
$6.78

AAG Stucchi 3249-9/S-U-PBT medium-based, snap-in or slide-on, non-shunted T8 lamp holders with nib.Ā  The T8/T12 (G13 base) tombstone style fluorescent lamp holder has a medium bi-pin, turn type with lamp lock, medium height (23mm) lamp center is rated up toĀ 660W-600V. UL certified, snap-in with post mounted, bottom load. COF white.

Also known as a T8 unshunted tombstone or T8 unshunted socket.

Ā

Ā

Brand: Ā Stucchi Contact: Ā Non-Shunted
Style: Ā Tombstone Base: Ā G13
Lamp: Ā T8 Mounting: Ā Snap-in/Slide-on
Connection: Ā Bi-pin Type: Ā Turn-Type
Wattage: Ā 660W max Voltage: Ā 600V max
Certifications: Ā cULus Height: Ā 1.38"
Width: Ā 0.98" Depth: Ā 0.66"

Ā

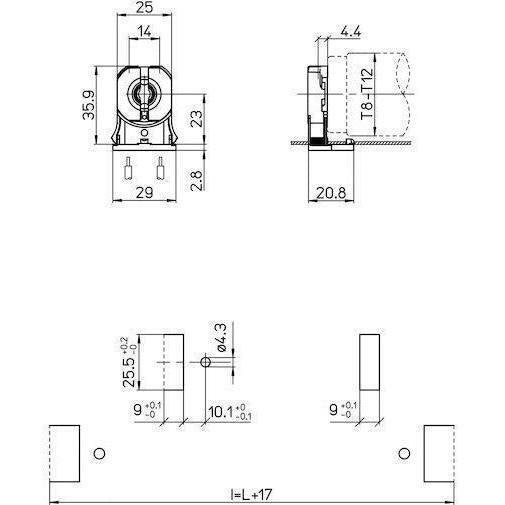

3249-9/S-U-PBT specifications sheet

Ā

Ā

  • T8 or T12 Fluorescent Light Fixtures
  • LED Tube Light Fixtures
  • Commercial Lighting
  • Indoor/Outdoor LightingĀ

Ā

  • White with Green Rotar
  • PBT material
  • Copper connectors
  • Lamp Contacts: Bi-Pin
  • Style Name: Straight Lamp
  • Self- Aligning
  • Bottom Load Wire
  • 18AWG Solid or Stranded Wire
  • Suitable for Damp LocationsĀ  Ā

    Ā

    • 30 day Seller Warranty
    • 3 year Limited MFG Warranty

    Ā

    Description

    AAG Stucchi 3249-9/S-U-PBT medium-based, snap-in or slide-on, non-shunted T8 lamp holders with nib.Ā  The T8/T12 (G13 base) tombstone style fluorescent lamp holder has a medium bi-pin, turn type with lamp lock, medium height (23mm) lamp center is rated up toĀ 660W-600V. UL certified, snap-in with post mounted, bottom load. COF white.

    Also known as a T8 unshunted tombstone or T8 unshunted socket.

    Ā

    Ā

    Brand: Ā Stucchi Contact: Ā Non-Shunted
    Style: Ā Tombstone Base: Ā G13
    Lamp: Ā T8 Mounting: Ā Snap-in/Slide-on
    Connection: Ā Bi-pin Type: Ā Turn-Type
    Wattage: Ā 660W max Voltage: Ā 600V max
    Certifications: Ā cULus Height: Ā 1.38"
    Width: Ā 0.98" Depth: Ā 0.66"

    Ā

    3249-9/S-U-PBT specifications sheet

    Ā

    Ā

    • T8 or T12 Fluorescent Light Fixtures
    • LED Tube Light Fixtures
    • Commercial Lighting
    • Indoor/Outdoor LightingĀ

    Ā

    • White with Green Rotar
    • PBT material
    • Copper connectors
    • Lamp Contacts: Bi-Pin
    • Style Name: Straight Lamp
    • Self- Aligning
    • Bottom Load Wire
    • 18AWG Solid or Stranded Wire
    • Suitable for Damp LocationsĀ  Ā

      Ā

      • 30 day Seller Warranty
      • 3 year Limited MFG Warranty

      Ā
