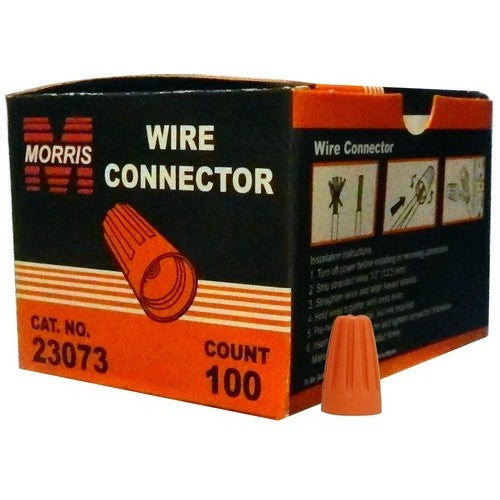

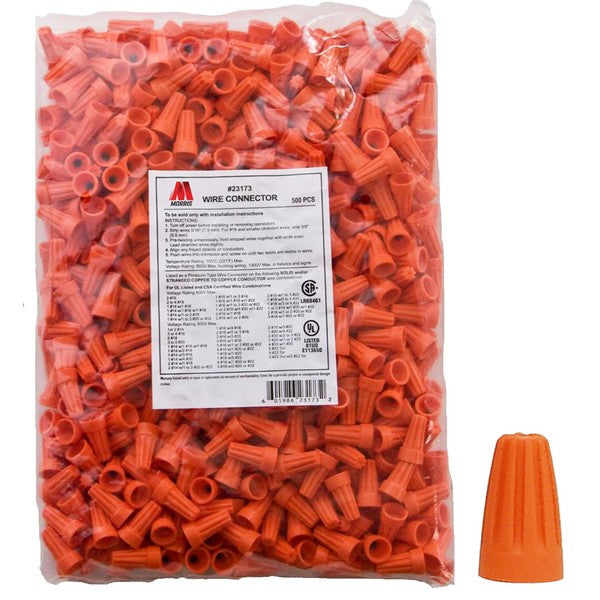

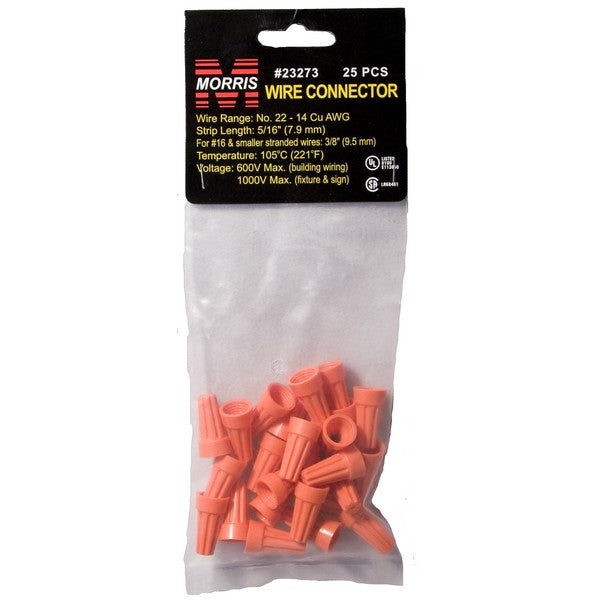

Orange Screw-On Wire Connectors - 22-14 AWG 600V Max

SKU 23273
Disponibilidad:
20 en stock, listo para ser enviado
Disponibilidad:
Agotado
Disponibilidad:
Agotado

Fast & Free shipping - 30 day Easy returns

Precio original $12.99 - Precio original $54.25
Precio original
$12.99
$12.99 - $54.25
Precio actual $12.99

Description

Achieve swift and secure electrical connections with these premium orange screw-on wire connectors. Their fixed, precise conical wire spring eliminates the need for pre-twisting conductors, creating its own reliable thread. Engineered for reusability, these connectors thread on and off smoothly for quick circuit modifications and additions. The tough, UL 94V-2 flame-retardant shell resists cracking, even under extreme pressure and maximum wire combinations. A ribbed cap ensures a secure grip and effortless fingertip starts, enhancing user convenience. Deep skirt wire entry provides superior protection against flash-overs and short circuits. Rated for temperatures up to 221°F, these cULus listed connectors guarantee safe and durable performance. Ideal for wire ranges from 22-14 AWG copper, supporting up to 600 volts for building wiring applications.

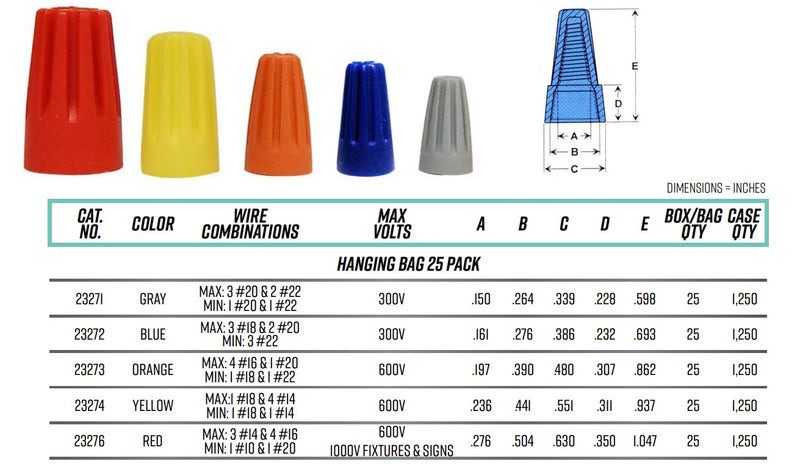

Color Orange
Wire Range 22-14 AWG Copper
Maximum Wire Combination 4 #16 with 1 #20
Minimum Wire Combination 1 #18 with 1 #20
Maximum Voltage 600V
Maximum Temperature Rating 221°F
Flame Retardancy UL 94V-2
Strip Length 5/16 inch
Certifications cULus Listed
